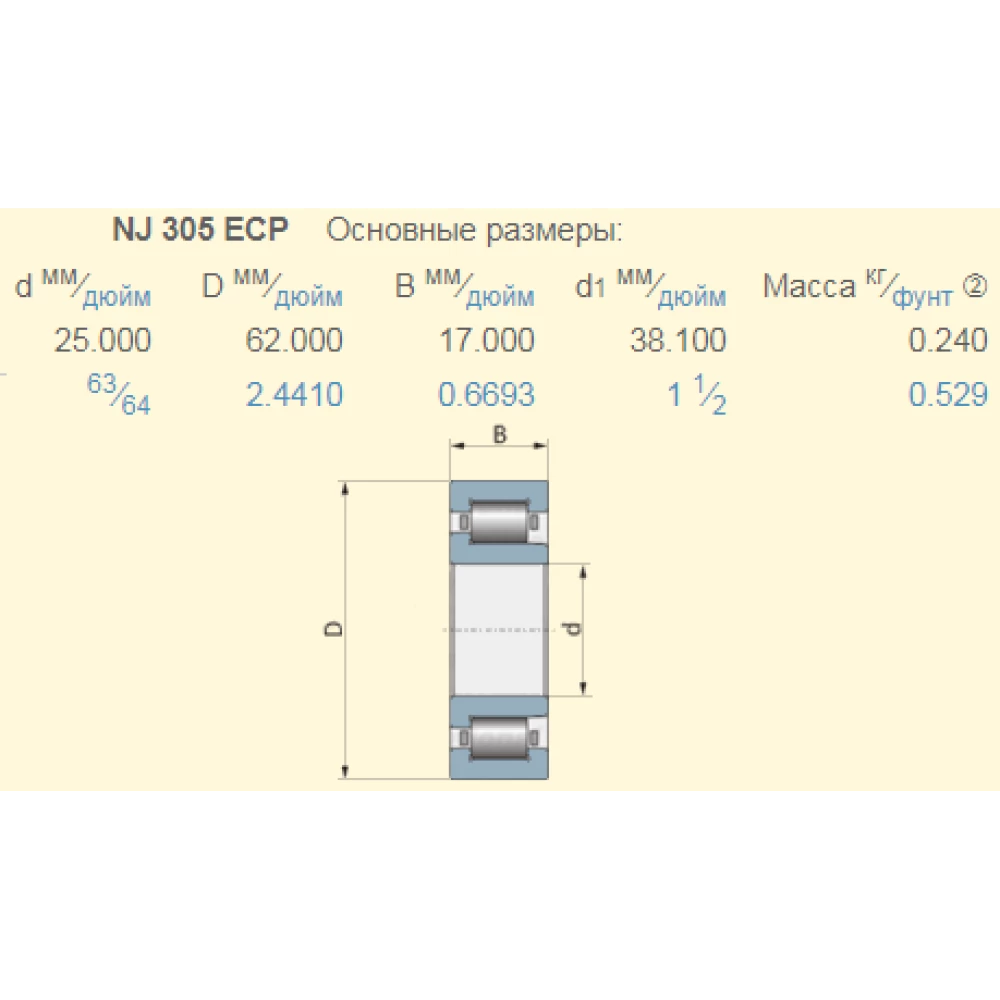

89811397 подшипники на жатку CASE 2030 аналог NJ305 FAG

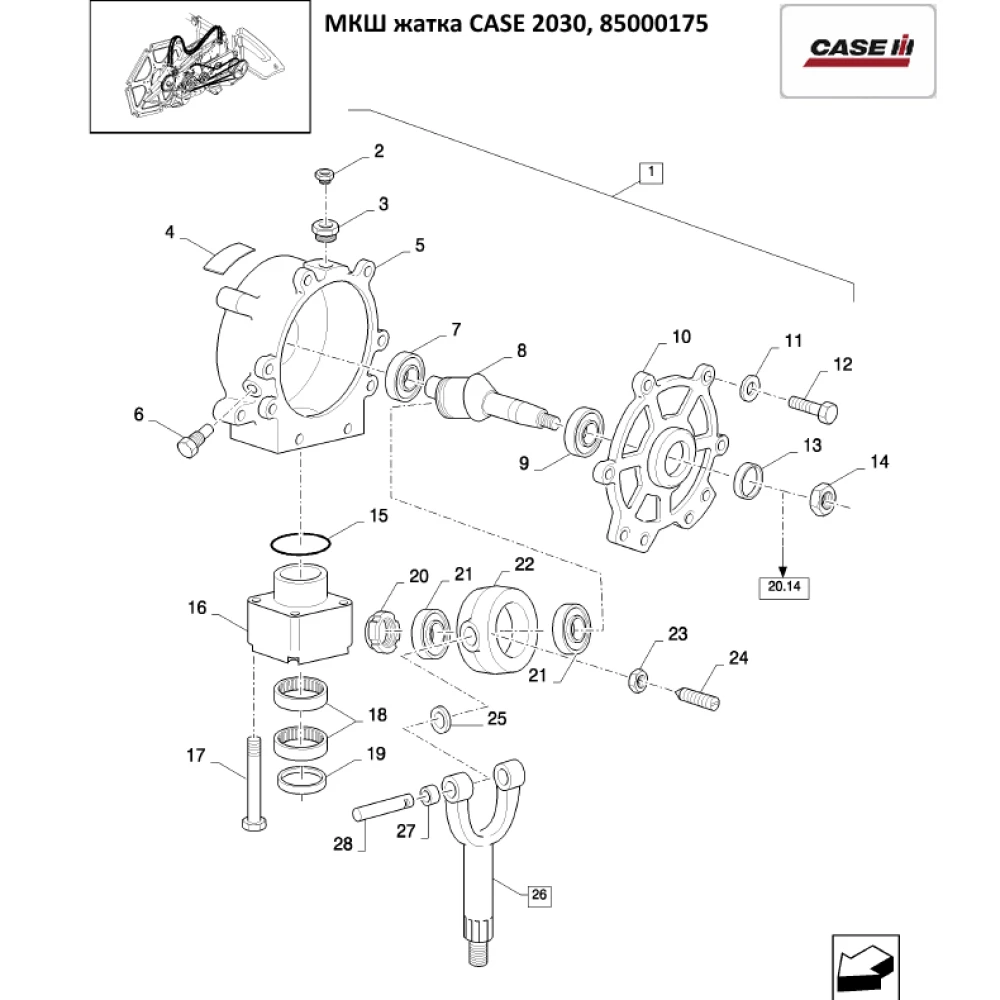

Подшипник на МКШ жатка CASE 2030 87021857 аналог NJ305 (рис. поз. 7)

1 ... 85000175 1 WOBBLE BOX, (2 to 28)
2 ... 80572820 1 SCREW, VENTING,
3 ... 80920158 1 CONNECTOR, HYD.,
4 ... NS 1 NOT SERVICED, DECAL
5 ... 84800473 1 HOUSING,
6 ... 80384922 1 PLUG,
7 ... 89811397 1 BEARING ASSY,
8 ... 89501697 1 SHAFT,
9 ... 89811632 1 BEARING ASSY,
10 ... 89501969 1 COVER,
11 ... 80140045 8 WASHER, 10MM
12 ... 80043140 8 BOLT, Hex, M10 x 30, 8.8,
13 ... 89513024 1 RING,
14 ... 80331192 1 NUT, M16
15 ... 80165216 1 O-RING,
16 ... 84818319 1 HOUSING, BEARING,
17 ... 80850125 4 SCREW, M12x70
18 ... 87021857 2 BEARING ASSY,
19 ... 80796503 1 ELEMENT, SEALING,
20 ... 80850119 1 NUT,
21 ... 80796504 2 BEARING, ROLLER,
22 ... 80850123 1 HOUSING, BEARING,
23 ... 80100067 2 NUT, M8, BSN C649
23 ... 832-46408 2 NUT, LOCK, M8 x 1.25, Cl 8, , ASN D650
24 ... 80300479 2 SCREW, M8x25
25 ... 80168100 2 SHIM,
26 ... 89513490 1 YOKE, (27)
27 ... 80709063 2 BUSHING,
28 ... 80847547 2 PIN,
