Подшипник шнека вальца кукурузной жатки Case, 630836C91 аналог JHT1613 KOYO

Подшипник шнека вальца кукурузной жатки Case, 630836C91 аналог JHT-1613

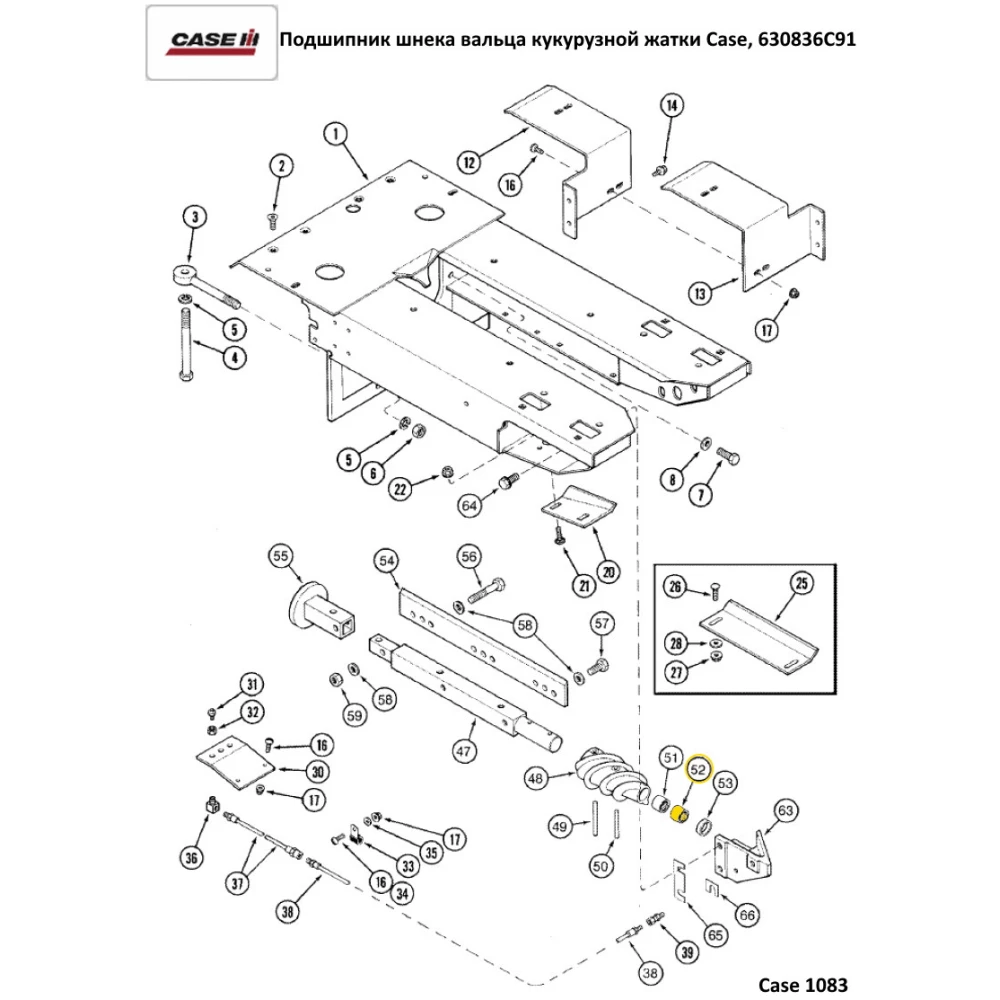

1 - 199460C1 - X - FRAME,
2 - 361-43816 - X - SCREW, Hex Soc Flat Hd, 3/8"-16 x 1", , 3/8 x 1 in
3 - 176365C1 - X - BOLT,
4 - 413-1096 - X - BOLT, Hex, 5/8"-11 x 6", G5, , 5/8 x 6
5 - 492-11062 - X - WASHER, LOCK, 5/8",
6 - 425-1010 - X - NUT, 5/8"-11, G5,
7 - 326-820 - X - BOLT, Hex, 1/2"-13 x 1 1/4", G8, Full Thd,
8 - 496-21053 - X - WASHER, 17/32" x 1 1/16" x .134",
12 - 1327136C1 - X - SHIELD, , 1043, 1063, 1083
12 - 1327139C1 - X - SHIELD, , 1044, 1054, 1064, 1084, Not Illustrated
13 - 1327135C1 - X - SHIELD, , 1043, 1063, 1083
13 - 1327138C1 - X - SHIELD, , 1044, 1054, 1064, 1084, Not Illustrated
14 - 281-1478 - X - SCREW, SELF TAP, Hex Wash Hd, 1/4" x 1/2", 1/4 x 1/2
16 - 477-73112 - X - BOLT, Slotted Tr Hd, 5/16"-18 x 3/4",
17 - 231-5145 - X - NUT, Flg, USR, 5/16"-18,
20 - 1306824C1 - X - KNIFE, , Right Hand
20 - 1306823C1 - X - KNIFE, , Left Hand, Not Illustrated
21 - 434-616 - X - BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", G5, Full Thd, 3/8 x 1
22 - 231-5146 - X - NUT, Flg, USR, 3/8"-16,
25 - 1306079C1 - 2 - KNIFE, , Rear
26 - 434-616 - 4 - BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", G5, Full Thd, 3/8 x 1
27 - 231-5146 - 4 - NUT, Flg, USR, 3/8"-16,
28 - 495-81135 - 4 - WASHER, 13/32" x 1" x .120", 13/32 x 1 x 7/64
30 - 199589C1 - X - SUPPORT,
31 - 219-8 - X - NIPPLE, LUBE, 1/4"-28 NPT x .54" lg, 1/4 tpr x 17/32
32 - F53473 - X - NUT, , 1/8 PT
33 - 362120R1 - X - CLAMP,
34 - 477-73108 - X - SCREW, Sltd Serr Truss Hd, 5/16"-18 x 1/2", 5/16 x 1/2
35 - 495-11034 - X - WASHER, 5/16", SAE, 11/32 x 11/16 x 1/16
36 - 580258R1 - X - ELBOW,
37 - 1306686C1 - 2 - HOSE, , 457 mm (18 in)
38 - 199373C2 - X - HOSE, , 1448 mm (57 in)
39 - 218-900 - X - CONNECTOR, HYD., 1/8" NPT x 1/8" NPSM Fem,
       1306174C93 - X - ROLL, , Right Hand, Consists Of 47 - 59
       1306173C93 - X - ROLL, , Left Hand, Not Illustrated, Consists Of 47 - 59
       1306163C93 - 1 - ROLL, , Right Hand, Consists Of 47 - 53
       1306162C93 - 1 - ROLL, , Left Hand, Not Illustrated, Consists Of 47 - 53
47 - 199293C5 - 1 - SHAFT,
48 - 1306729C2 - 1 - AUGER, , Right Hand
48 - 1306728C2 - 1 - AUGER, , Left Hand, Not Illustrated
49 - 176307C1 - 1 - RIVET, , 3/8 x 3
50 - 156167C1 - 1 - RIVET, , 3/8 x 2-9/16
51 - 308674R1 - 1 - BEARING, NEEDLE,

52 - 630836C91 - 1 - BEARING, NEEDLE, 1-19/64 OD
53 - 1327151C1 - 1 - BUSHING,
54 - 1327126C1 - 4 - KNIFE,
55 - 176301C2 - 1 - COUPLING, SPLINED,
56 - 326-844 - 2 - BOLT, Hex, 1/2"-13 x 2 3/4", G8,
57 - 326-816 - 8 - BOLT, Hex, 1/2"-13 x 1", G8, Full Thd,
58 - 496-21053 - 12 - WASHER, 17/32" x 1 1/16" x .134",
59 - 329-108 - 2 - NUT, 1/2"-13, G8,
63 - 1306172C1 - X - SUPPORT, , Right Hand
63 - 1306171C1 - X - SUPPORT, , Left Hand, Not Illustrated
64 - 409-7812 - X - BOLT, Hex Flg, 1/2"-13 x 3/4", Serr, 1/2 x 3/4
65 - 199806C1 - X - SHIM, , 0.032 in
66 - 199408C1 - X - SHIM, , 0.032 in
66 - 1327159C1 - X - SHIM, , 0.010 in
