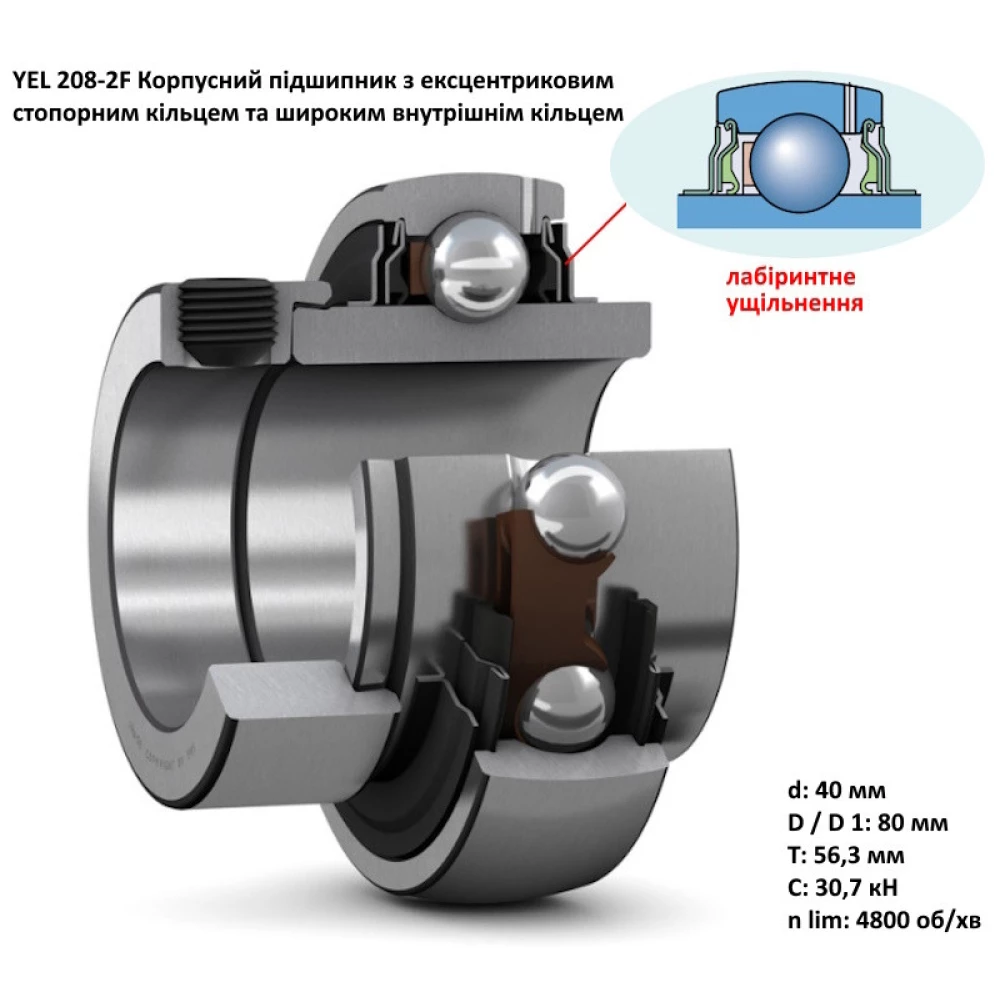

Подшипник измельчителя Case 2188, 1994713C1, GE40KRRB, YEL208-2F SKF

Подшипник измельчителя Case 2188, 1994713C1 аналог GE40KRRB

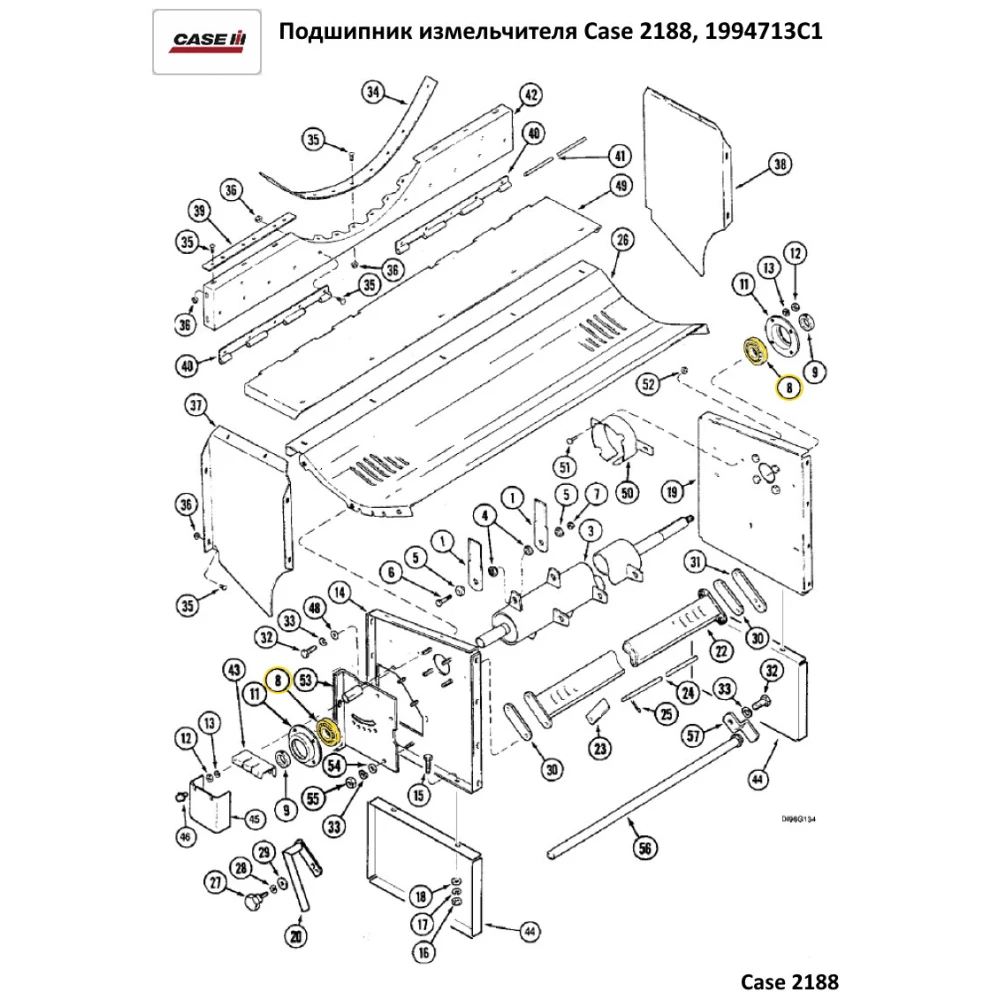

    1347203C5 1 ROTOR ASSY., consists of: 1 - 7
    193361A1 AR PACKAGE, KIT, consists of: 2 x 1994760C4, 2 x 1994758C2
1 - 1994760C4 - 44 - KNIFE, BLADE, order 193361A1
3 - NSS - 1 - NOT SERVICED SEPARATELY, ROTOR
4 - 1322242C1 - 44 - BUSHING, SPACER
5 - 1994758C2 - 44 - CENTERING RING, PIVOT, order 193361A1
6 - 828-10055 - 22 - BOLT, Hex, M10 x 55, 10.9, BOLT 10 x 55 mm
7 - 832-41310 - 22 - NUT, LOCK, M10 x 1.5, Cl 10, lock 10 mm
8 - 1994713C1 - 2 - BEARING,
9 - 1347234C1 - 3 - CLAMP, COLLAR
11 - 1994711C1 - 4 - FLANGE, HOUSING
12 - 829-2312 - 8 - NUT, M12 x 1.75, Flg, Cl 10, 12 mm
13 - 80679 - 8 - WASHER, LOCK, 1/2",
14 - 140519A1 - 1 - SIDE-PLATE, SUPPORT left
15 - 413-616 - 20 - BOLT, Hex, 3/8"-16 x 1", G5, Full Thd, 3/8 x 1 in
16 - 425-106 - 20 - NUT, 3/8"-16, G5,
17 - 492-11038 - 20 - WASHER, LOCK, 3/8",
18 - 495-11041 - 20 - WASHER, 3/8", SAE, 13/32 x 13/16 x 1/16 in
19 - 1994707C2 1 SIDE-PLATE, SUPPORT right
20 - 140525A1 - 1 - HANDLE, ARM
       140961A1 - 1 - SUPPORT, Includes: 22 - 25
22 - NSS - 1 - NOT SERVICED SEPARATELY, SUPPORT
23 - 1322233C2 - 43 - KNIFE, BLADE
24 - 1311905C1 - 1 - ROD,
25 - 1322252C1 - 1 - PIN,
26 - 1347205C1 - 1 - PROTECTION PLATE, BOTTOM
27 - 1322232C2 - 4 - HANDLE, KNOB
28 - 892-11012 - 4 - WASHER, LOCK, M12,
29 - 495-81163 - 8 - WASHER, 17/32" x 1 1/2" x .120",
30 - 1322248C1 - 2 - BLOCK, SHIM adjusting
31 - 140760A1 - 1 - LEVER, ARM
32 - 628-10030 - 6 - BOLT, Hex, M10 x 30, 10.9, Full Thd,
33 - 892-11010 - 9 - WASHER, LOCK, M10, M10
34 - 182950C1 - 1 - SUPPORT, STRIP
35 - 477-73812 - 29 - SCREW, Sltd Serr Truss Hd, 3/8" x 3/4", 3/8 x 19 mm
36 - 231-5146 - 29 - NUT, Flg, USR, 3/8"-16,
37 - 1347214C1 - 1 - SUPPORT, DEFLECTOR left
38 - 1347215C1 - 1 - SUPPORT, DEFLECTOR right
39 - 182895C1 - 2 - FILLER, STRIP
40 - 182893C1 - 1 - HINGE,
41 - 182980C1 - 1 - ROD,
42 - 182931C1 - 1 - SUPPORT,
43 - 1994734C1 - 1 - SUPPORT,
44 - 1323248C1 - 2 - SUPPORT,
45 - 181208C3 - 1 - SUPPORT, if so equipped

46 - 280-1478 - 2 - SCREW, SELF TAP, Hex Wash Hd, 1/4" x 1/2", 1/4 x 1/2 in, if so equipped
48 - 495-71041 - 6 - WASHER, 3/8", 13/32 x 1-1/4 x 3/32
49 - 1347207C1 - 1 - DOOR, PLATE
50 - 1347216C2 - 2 - FIXING BRACKET, SHIELD
51 - 477-73112 - 4 - BOLT, Slotted Tr Hd, 5/16"-18 x 3/4",
52 - 231-5145 - 4 - NUT, Flg, USR, 5/16"-18,
53 - 140523A1 - 1 - SIDE-PLATE, ASSY.
56 - 140521A1 - 1 - ROD,
57 - 140527A1 - 1 - LATCH ASSY., SUPPORT
54 - 895-15010 - 3 - WASHER, M11 x 24 x 2,
55 - 829-1410 - 3 - NUT, M10, Cl 10,
