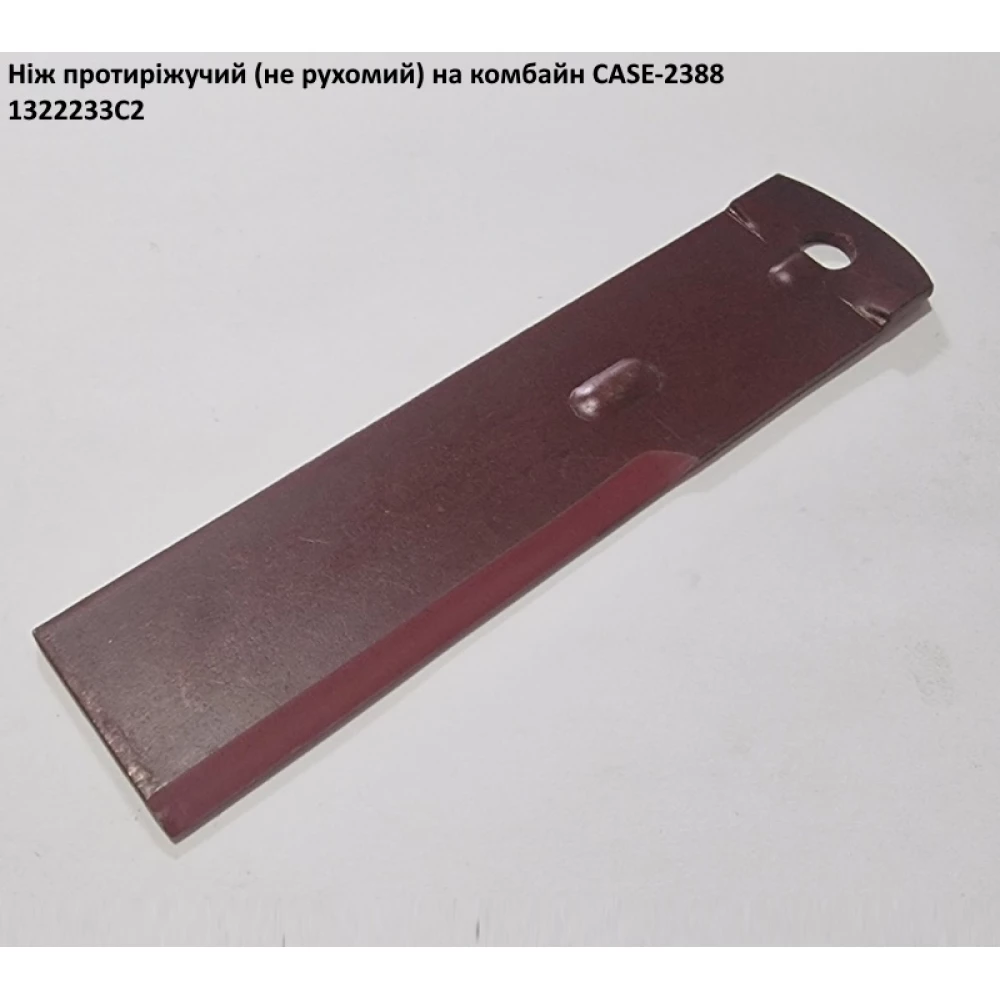

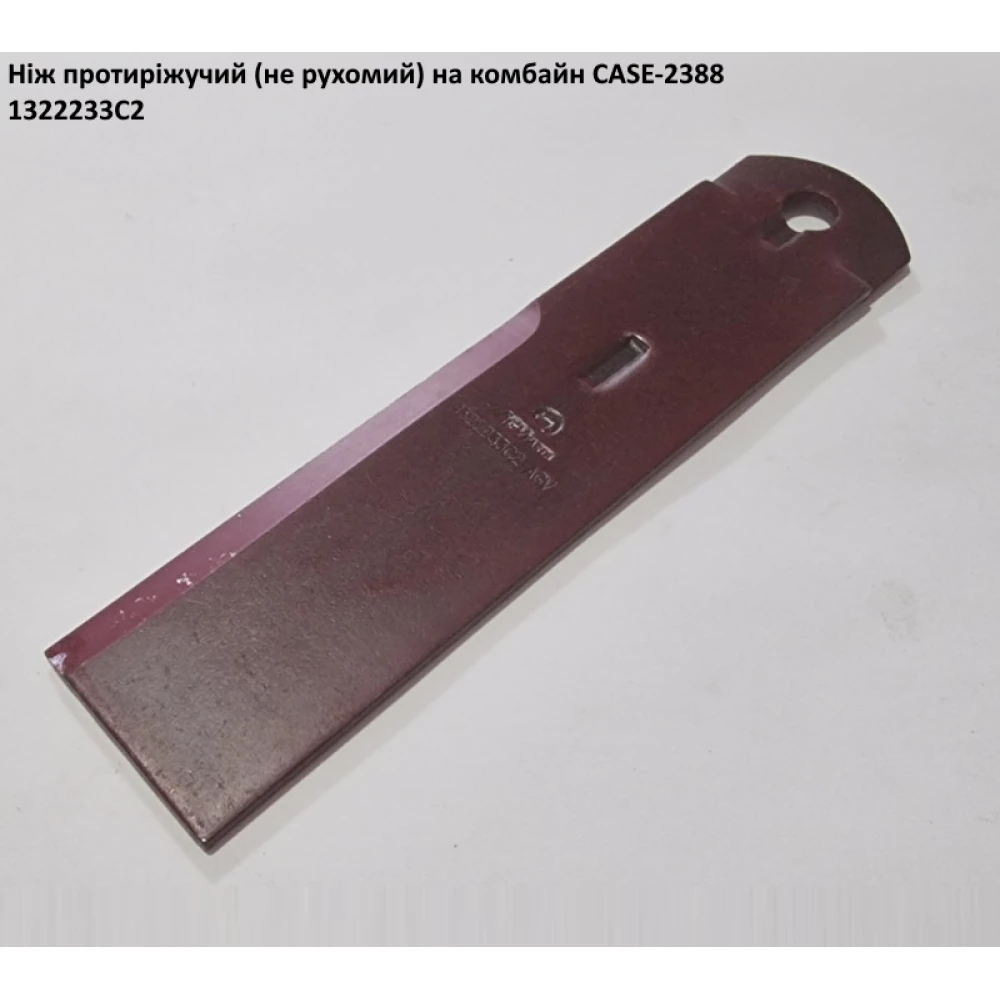

Ніж притиріжучий НЕ РУХОМИЙ CASE-2388 - 1322233C2

Ніж притиріжучий НЕ РУХОМИЙ CASE-2388 - 1322233C2

запчастини на різку комбайна CASE-2388 (під ніж ГЛАДКИЙ)
- 1347203C5 1 ROTOR ASSY. Inc.1 - 7
- 193361A1  KIT Kit, Inc. (2) 1994760C4, (2) 1994758C2
1 1994760C4 48 KNIFE Order 193361A1
4 1322242C1 48 SPACER
5 1994758C2 48 BUSHING, 10.5mm ID x 30mm OD x 15mm L Order 193361A1
6 828-10055 24 BOLT, Hex, M10 x 1.5 x 55mm, Cl 10.9
7 832-41310 24 NUT, M10 x 1.5, Cl 10
8 1994713C1 2 BEARING ASSY
9 1347234C1 3 CLAMP
11 1994711C1 4 FLANGE
12 829-2312 8 FLANGE NUT, M12 x 1.75, Flg, Cl 10
13 80679 8 LOCK WASHER, 1/20.507 CST ZND
14 140519A1 1 SIDE PLATE Left Hand
15 413-616 20 BOLT, Hex, 3/8" - 16 x 1", Gr 5
16 425-106 20 NUT, 3/8"-16, Cl 5
17 492-11038 20 LOCK WASHER, 3/8"
18 495-11041 20 WASHER, 0.406" ID x 0.812" OD x 0.065" W
19 1994707C2 1 SIDE PLATE Right Hand
20 140525A1 1 HANDLE
20 140961A1 1 SUPPORT Inc. 22 - 25
22 NSS 1 NOT SOLD SEPARAT SUPPORT
23 1322233C2 47 KNIFE, 168.5mm L x 40mm W x 3mm Thk
24 1311905C1 1 ROD
25 1322252C1 1 HAIR PIN COTTER
26 1347205C1 1 PROTECTION PLATE
27 1322232C2 4 HANDLE
28 892-11012 4 LOCK WASHER, M12
29 495-81163 8 WASHER, 17/32" x 1 1/2" x .120"
30 1322248C2 2 BLOCK Shim
31 140760A1 1 LEVER
32 628-10030 6 BOLT, Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd
33 892-11010 9 LOCK WASHER, M10
34 182950C1 1 SUPPORT
35 477-73812 29 SERRATED SCREW, Truss HD, 3/8" - 16 x 3/4"
36 231-5146 29 FLANGE NUT, 3/8"-16
37 1347214C1 1 SUPPORT Discharge, Left Hand
38 1347215C1 1 SUPPORT Discharge, Right Hand
39 182895C1 2 FILLER
40 182893C1 2 HINGE
41 182980C1 1 ROD, 11.11mm OD x 1556mm L
42 182931C1 1 SUPPORT
43 1994734C1 1 SUPPORT
44 1323248C1 2 SUPPORT
45 181208C3 1 SUPPORT If equipped
46 280-1478 2 SELF-TAP SCREW, HWH, 1/4-14 x 1/2" If equipped
48 495-71041 6 WASHER, 10.31mm ID x 31.75mm OD x 2.54mm Thk
49 1347207C1 1 DOOR
50 1347216C2 2 FIXING BRACKET
51 477-73112 4 SERRATED SCREW, Sl Truss Hd, 5/16" - 18 x 3/4"
52 231-5145 4 SERRATED NUT, Flg, USR, 5/16"-18
53 140523A1 1 SIDE PLATE
54 895-15010 3 WASHER, 11mm ID x 24mm OD x 2mm Thk
55 829-1410 3 NUT, M10 x 1.5, Cl 10.9
56 140521A1 1 ROD
57 140527A1 1 LATCH ASSY.
