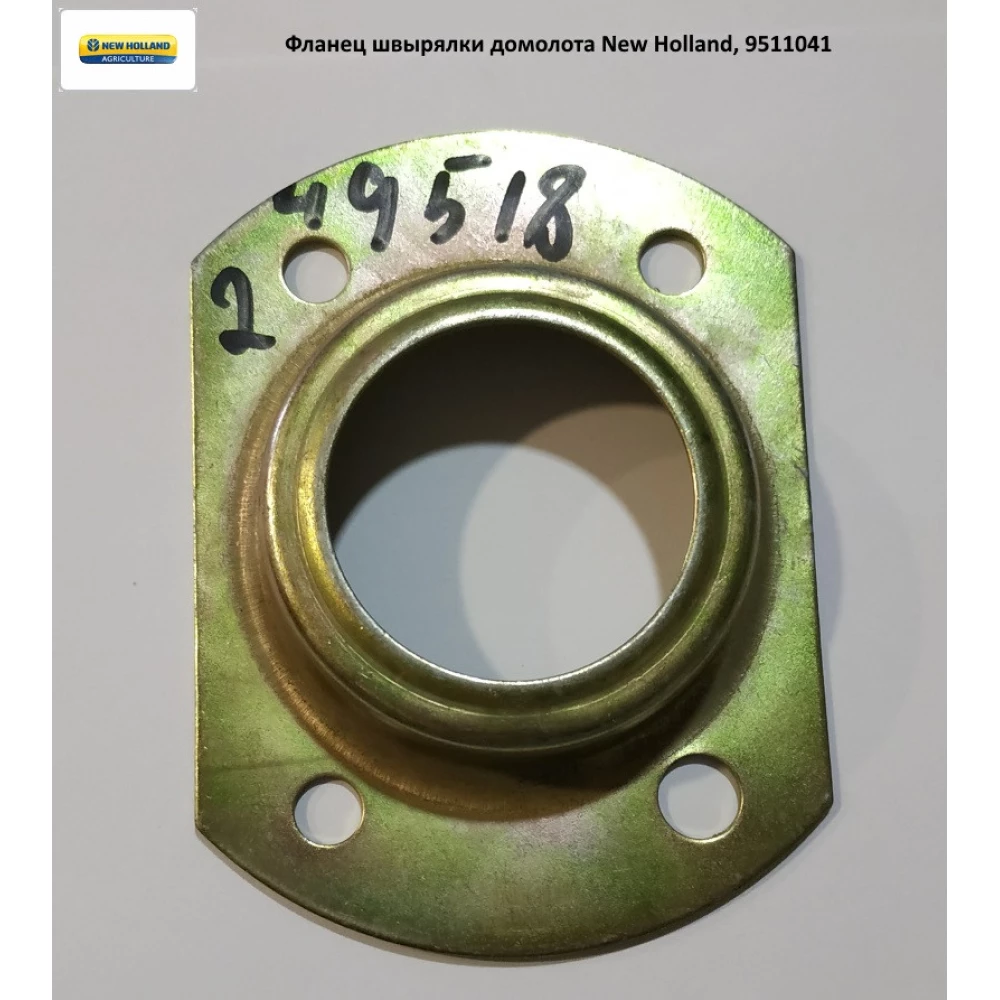

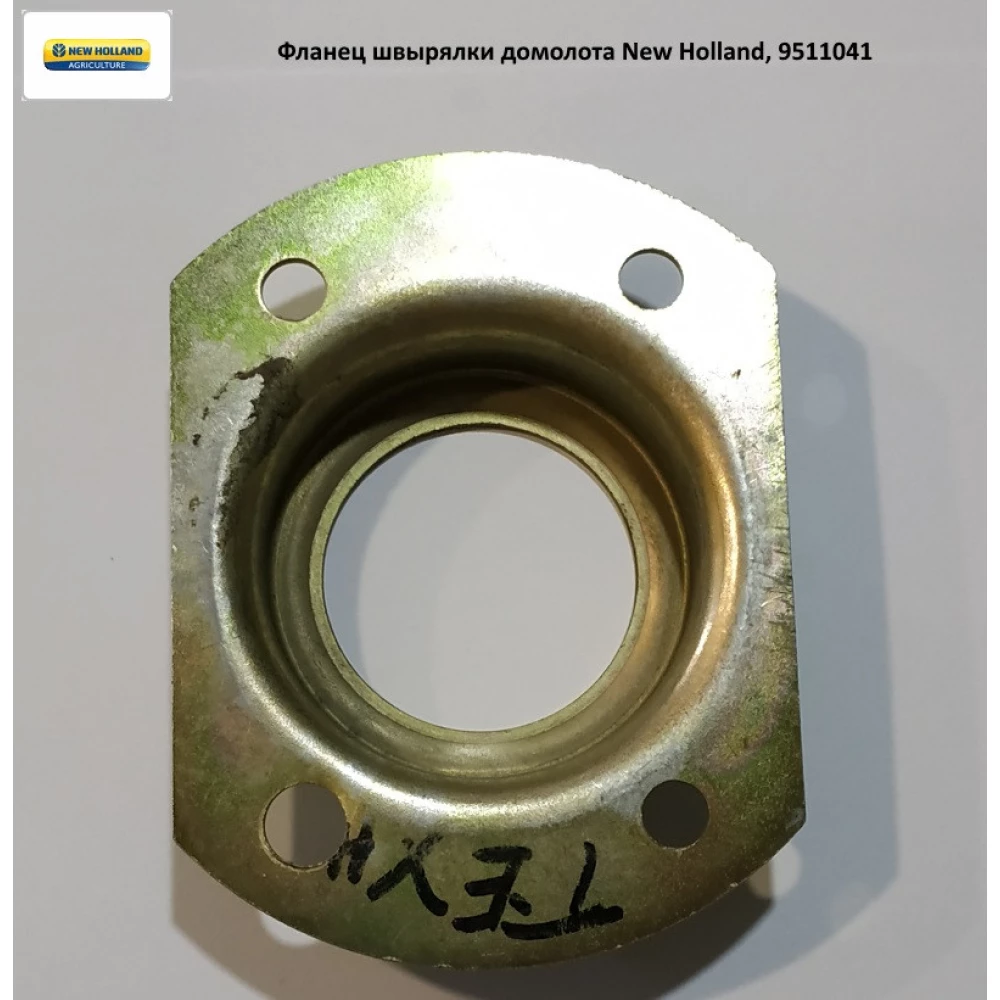

Фланець швирялки домолота New Holland, 9511041

Корпус підшипника New Holland, 9511041

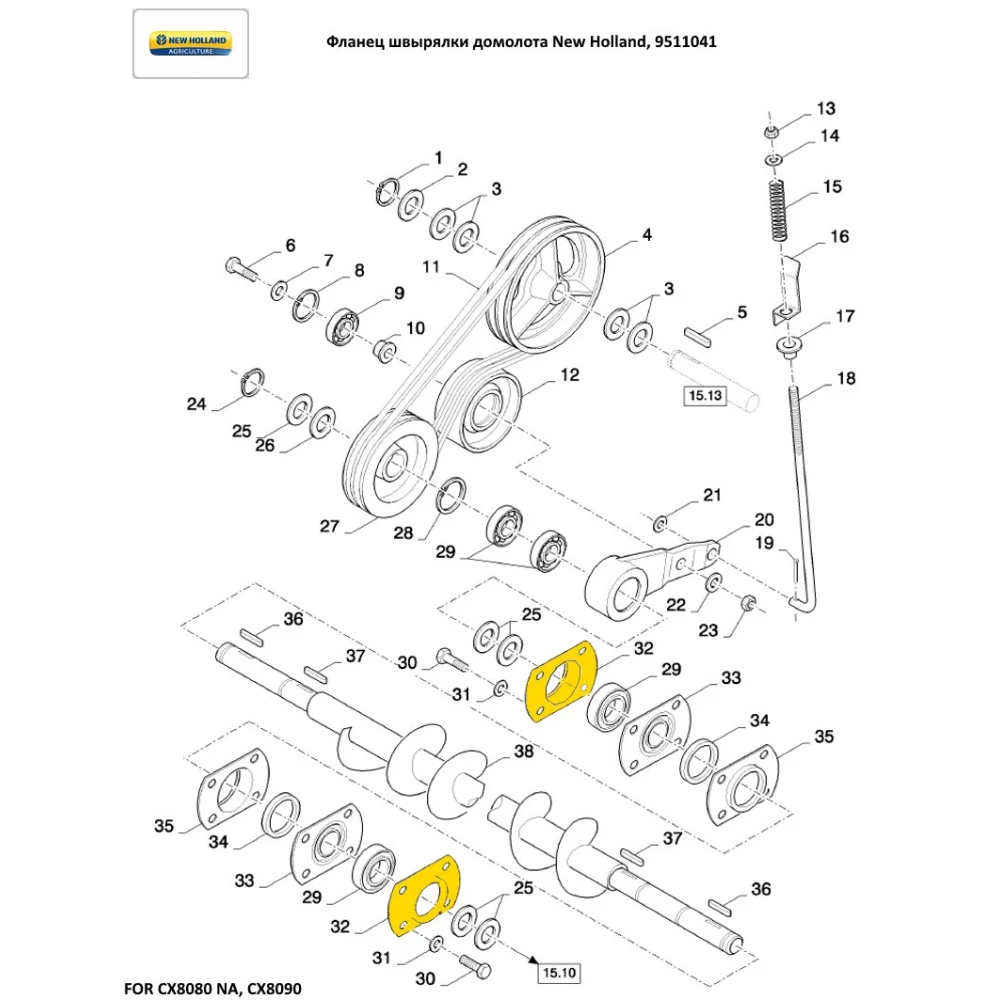

1 - 370002 - 1 - RING, SNAP, M25, Ext,
2 - 419854 - AR WASHER,
3 - 444976 - AR WASHER,
4 - 84074380 - 1 - PULLEY,
5 - 170008 - 1 - KEY,
6 - 300512 - 1 - SCREW, Hex, M12 x 55, 8.8,
7 - 543043 - 1 - WASHER,
8 - 370011 - 1 - RING, SNAP, M52, Int,
9 - 443898 - 1 - BEARING, BALL,
10 - 84022798 - 1 - BUSHING,
11 - 84058339 - 1 - SET OF BELTS,
12 - 84074694 - 1 - WHEEL, IDLER,
13 - 412126 - 1 - NUT, LOCK, M12 x 1.75, Cl 8,
14 - 378245 - 1 - WASHER, M12,
15 - 440651 - 1 - SPRING,
16 - 84442145 - 1 - INDICATOR,
17 - 439857 - 1 - BUSHING,
18 - 84058052 - 1 - ROD,
19 - 130003 - 1 - PIN, SPLIT (COTTER), M3.2 x 20,
20 - 84074536 - 1 - ARM,
21 - 140017 - 1 - WASHER, M10 x 20 x 2,
22 - 140046 - 1 - WASHER, Belleville, M12,
23 - 9706685 - 1 - NUT, M12, Cl 8,
24 - 370004 - 1 - RING, SNAP, M35, Ext,
25 - 140119 - AR WASHER,
26 - 84058053 - AR WASHER,
27 - 84074486 - 1 - PULLEY,
28 - 370012 - 1 - RING, SNAP, M62, Int,
29 - 364908 - 4 - BEARING ASSY,
30 - 120103 - 8 - BOLT, Hex, M8 x 16, 8.8,
31 - 322358 - 8 - WASHER, SPRING, Belleville, M8,
32 - 9511041 - 2 - FLANGE,
33 - 444104 - 2 - COVER,
34 - 220010 - 2 - ELEMENT, SEALING,
35 - 444105 - 2 - COVER,
36 - 354775 - 2 - KEY,
37 - 323190 - 2 - KEY,
38 - 84074909 - 1 - AUGER, , STANDARD
38 - 84078346 - 1 - AUGER, , REINFORCED
