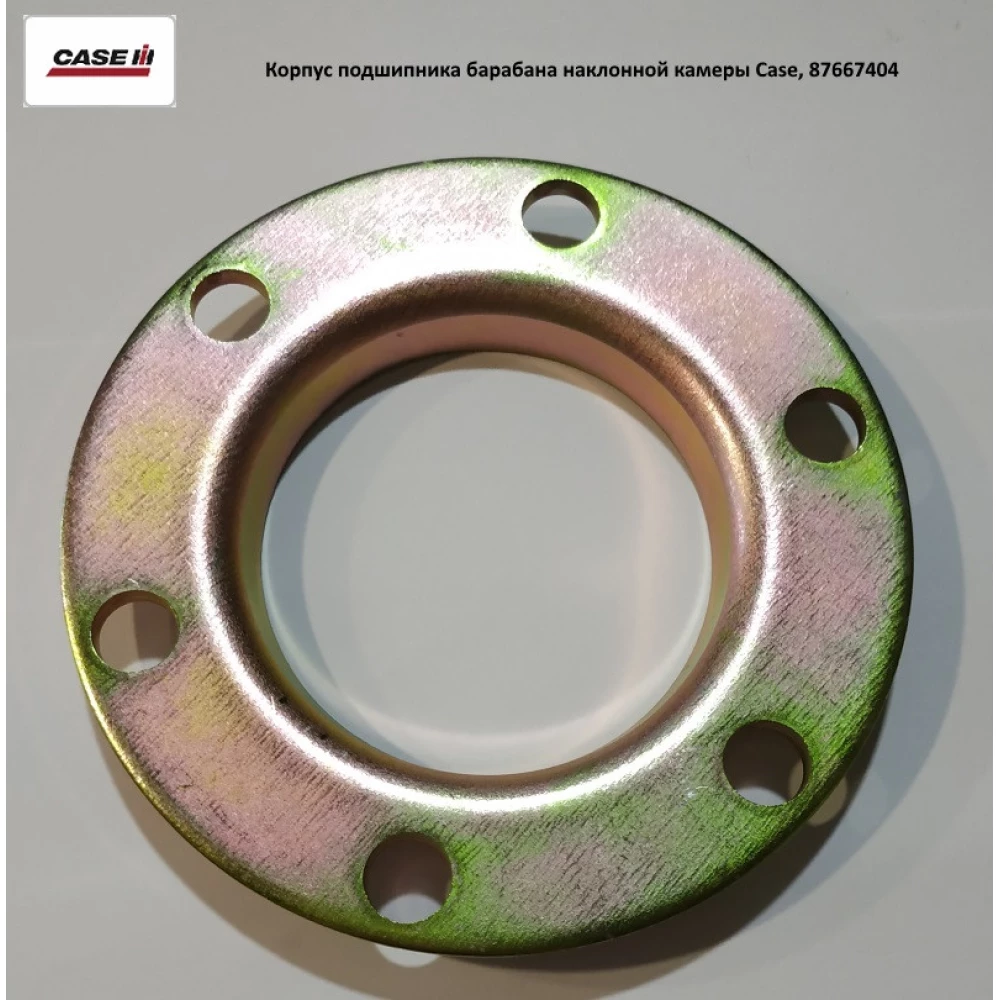

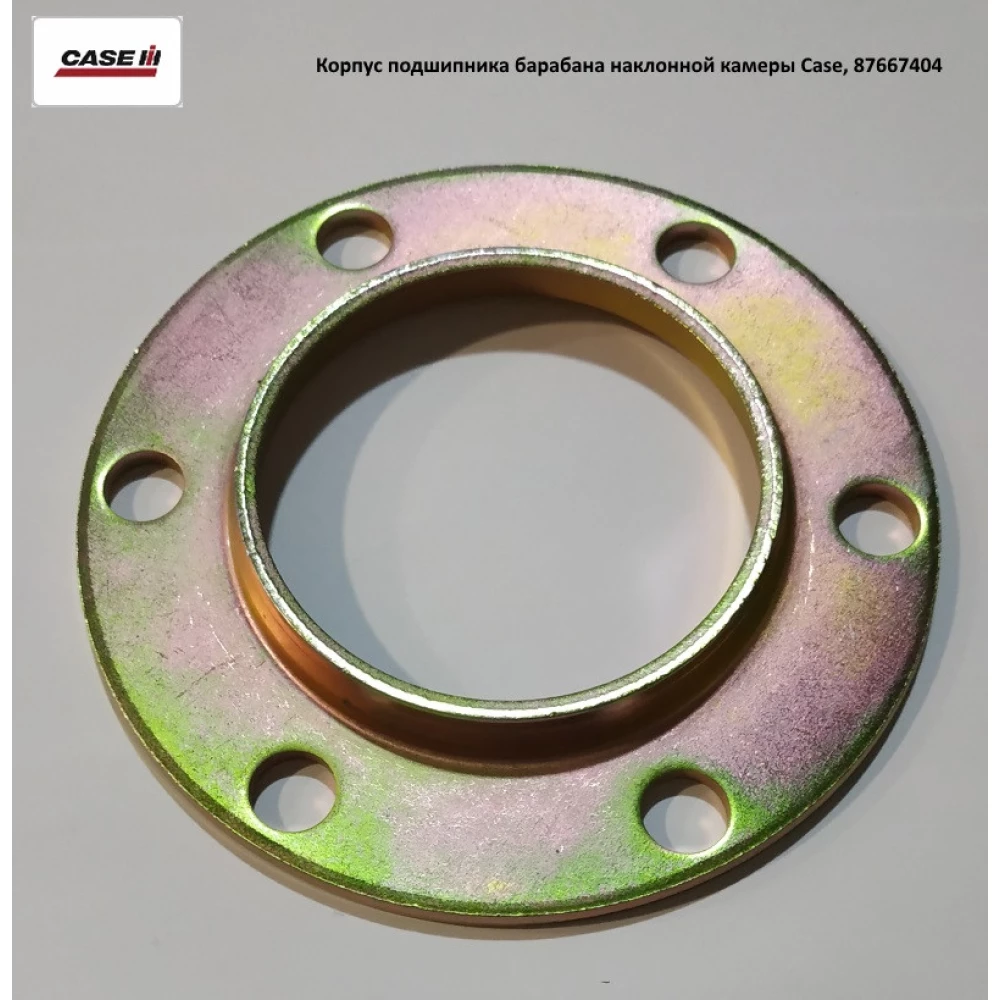

Флянець підшиплення барабана похилої камери Case, 87667404

Корпус підшипника барабана похилої камери Case, 87667404

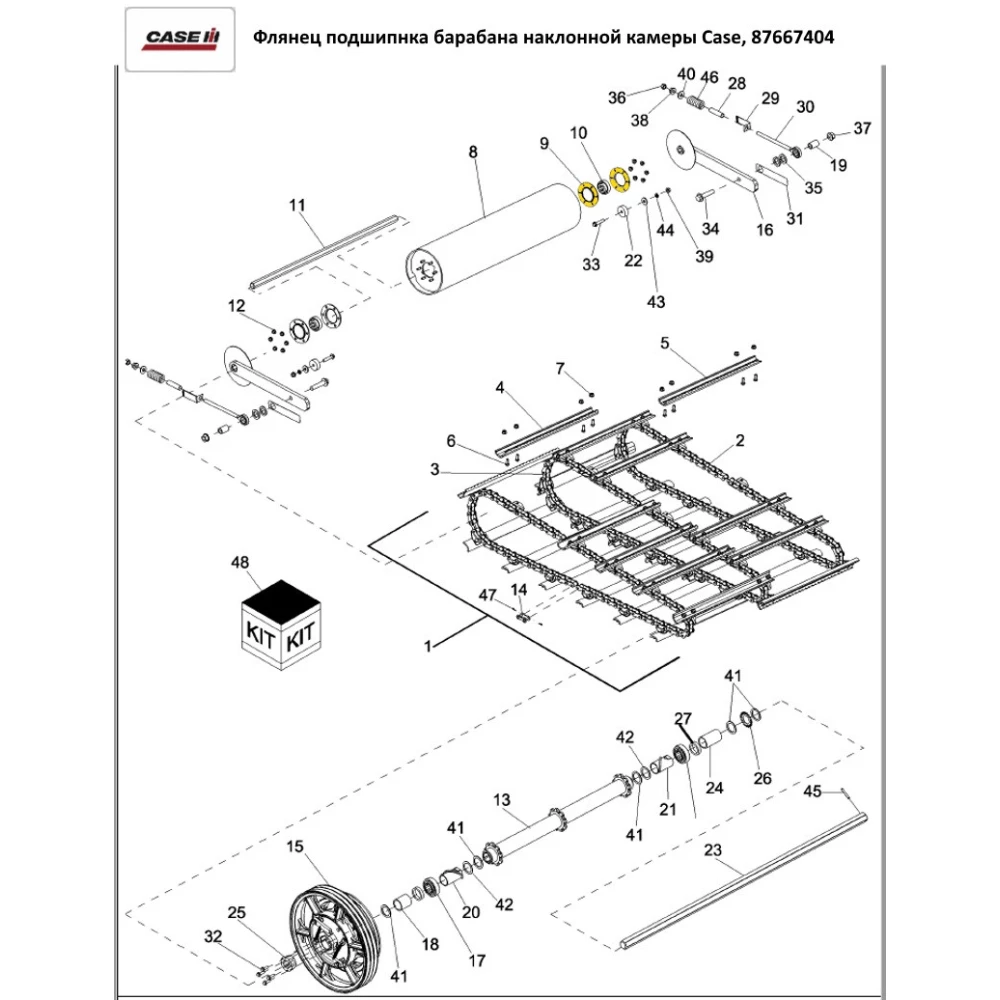

1 - 84148072 - 1 - CONVEYOR ASSY., Feeder 60 Inch Serrated Slat, Inc. 2 - 7
2 - 118661A1 - 2 - CHAIN, 557 Roller, 60 Inch Feeder, Outer
3 - 1989529C1 - 1 CHAIN, 557 Roller, 60 Inch, Center
4 NS 12 NOT SERVICED, SLAT, Conveyor, Right Hand, Serrated
4 - 84151020 - 1 - PACKAGE,SERVICE, Conveyor, Right Hand, Inc. Qty 1 Slat, Qty 4 Ref. 6, 7
5 NS 12 NOT SERVICED, SLAT, Conveyor, Left Hand, Serrated
5 - 84151018 - 1 PACKAGE,SERVICE, Conveyor, Left Hand, Inc. Qty 1 Slat, Qty 4 Ref. 6, 7
6 - 9861444 - 96 - BOLT, Hex, M10 x 20, 10.9, Full Thd,
7 - 84184082 - 96 - NUT, LOCK,
8 - 87722161 - 1 - DRUM,
9 - 87667404 - 4 - BEARING, BALL,
10 - 121602 - 2 - BEARING, BALL,
11 - 87323562 - 1 - SHAFT,
12 - 86050279 - 12 - NUT, M10 x 1.5, Flg, Cl 10,
13 - 84122242 - 1 - SPROCKET ASSY., Feeder Conveyor
14 - 1324294C1 - 3 - LINK, CONNECTING,
15 NSS 1 NOT SERVICED SEPARATELY, CLUTCH, Feeder Conveyor Without Rock Trap, See Figure 09A-03A
16 - 87687030 - 2 - ARM ASSY., Conveyor
17 - 87620467 - 2 - BEARING ASSY,
18 - 87557066 - 1 - SPACER, Clutch Hub
19 - 87688473 - 2 - SPACER, Arm
20 - 87751613 - 1 - SPACER, Spocket Cleanout, Right Hand
21 - 87751611 - 1 - SPACER, Spocket Cleanout, Left Hand
22 - 87389815 - 2 - SPACER, Feeder Drum Stop
23 - 84174008 - 1 - SHAFT, Feeder Conveyor
24 - 87678514 - 1 - SPACER, Spocket End
25 - 87619287 - 1 - HOUSING,
26 - 87557056 - 1 - DISC, NOTCHED, Feeder Speed Pickup
27 - 87620468 - 2 - BUSHING, LARGE,
28 - 84147444 - 2 - SPACER, Spring Tensioner
29 - 84128484 - 2 - BRACKET, Indicator
30 - 84158123 - 2 - EYEBOLT,
31 - 87691301 - 2 - STRAP, Feeder Side
32 - 87030508 - 4 - BOLT, Hex Flg, M12 x 30, 10.9, Full Thd,
33 - 84148135 - 2 - BOLT,
34 - 84163827 - 2 - BOLT,
35 - 495-82234 - 4 - WASHER, 1 9/32“ x 2“ x .234“,
36 - 392530 - 2 - NUT, M16, Cl 10,
37 - 86512499 - 2 - NUT, M20 x 2.5, Flg, Cl 10,
38 - 86512498 - 2 - NUT, M16 x 2, Flg, Cl 10,
39 - 86512497 - 2 - NUT, M12 x 1.75, Flg, Cl 10,
40 - 325594 - 2 - WASHER, M17 x 40 x 5 Thk,
41 - 87690483 - AR WASHER,

42 - 87690482 - AR WASHER,
43 - 495-81162 - 2 - WASHER, 17/32“ x 1 1/2“ x .179“,
44 - 492-11050 - 2 - WASHER, LOCK, 1/2“,
45 - 87016664 - 1 - PIN, M12 x 70, Coiled,
46 - 84075179 - 2 - SPRING,
47 - 1329837C2 - 6 - PIN,
48 - 84192309 - 1 - PACKAGE,SERVICE, Conveyor Feeder Hardware Service Pack, Inc. 426-616 Bolt Qty 100, 84184082 Nut Qty 100
