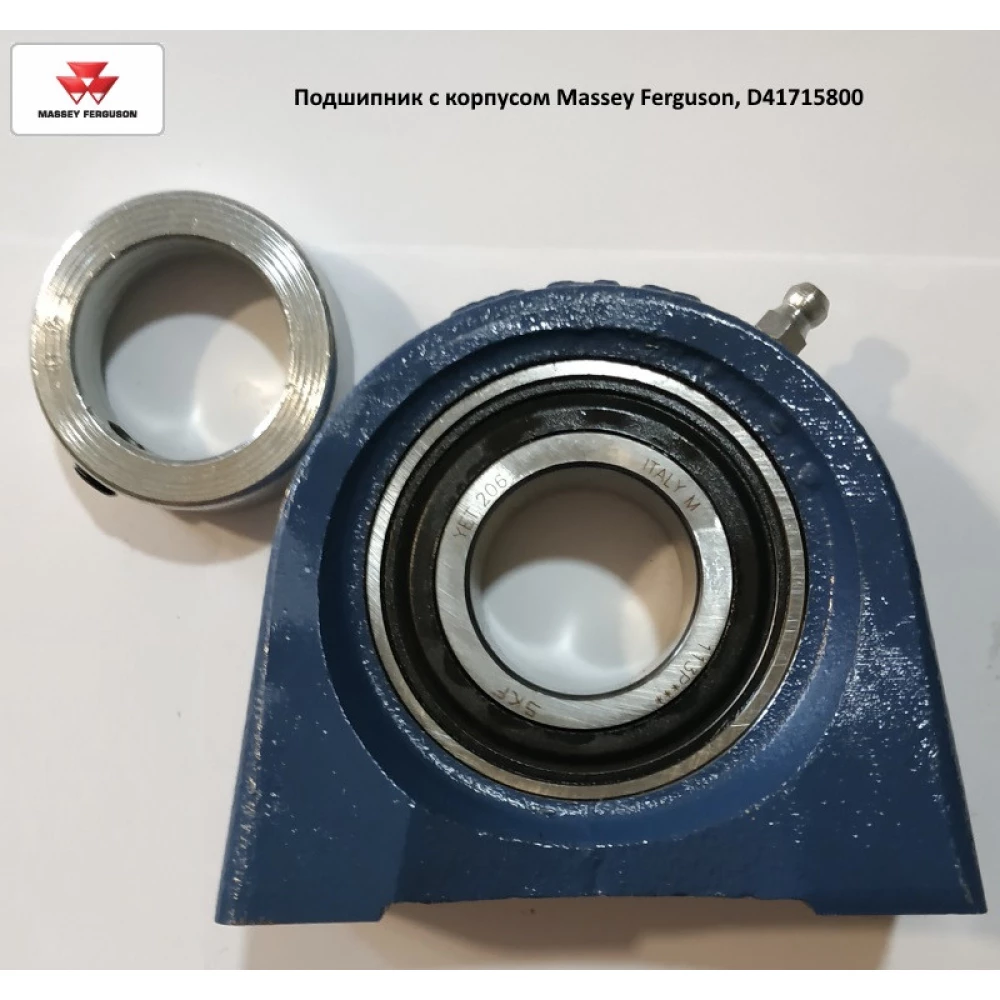

Подшипник с корпусом Massey Ferguson, D41715800

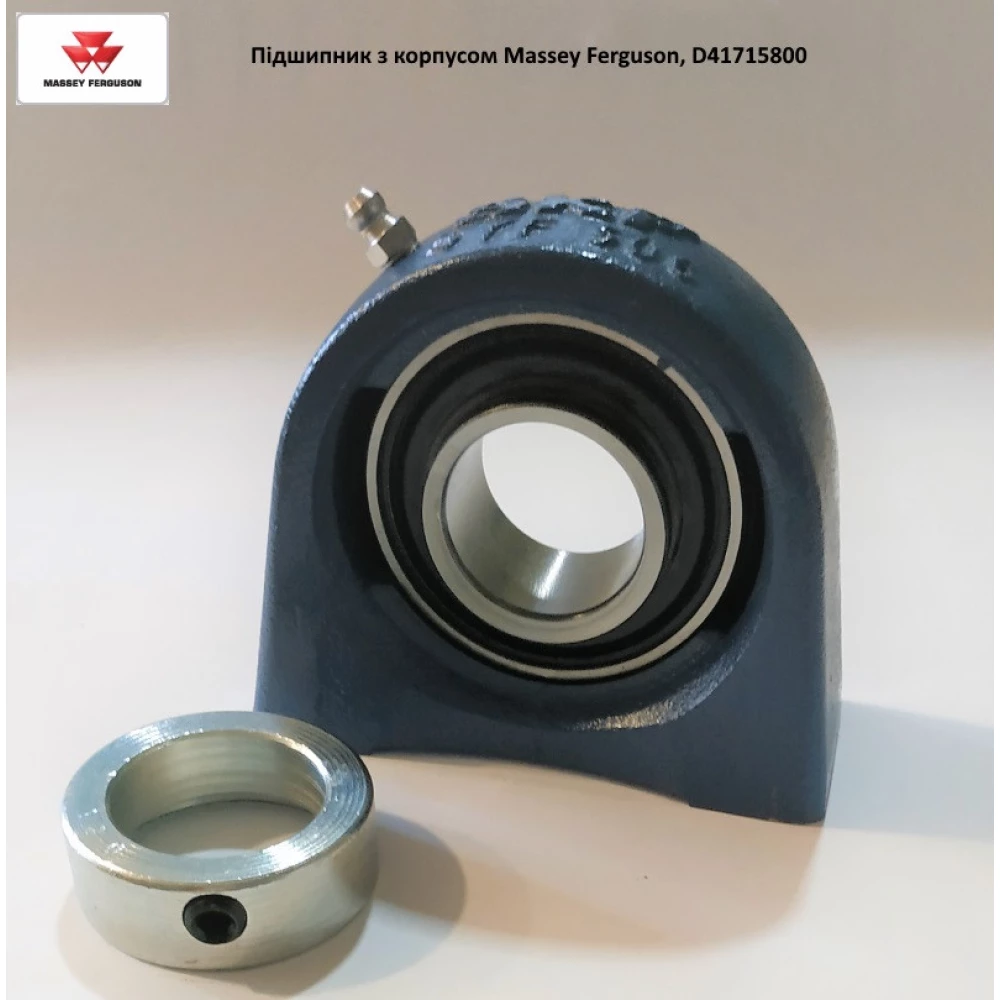

Підшипник з корпусом Massey Ferguson, D41715800

аналог SYF 30 FM (подшипник YET 206 корпус SYF 506)

застосовується на MF 7254/7256

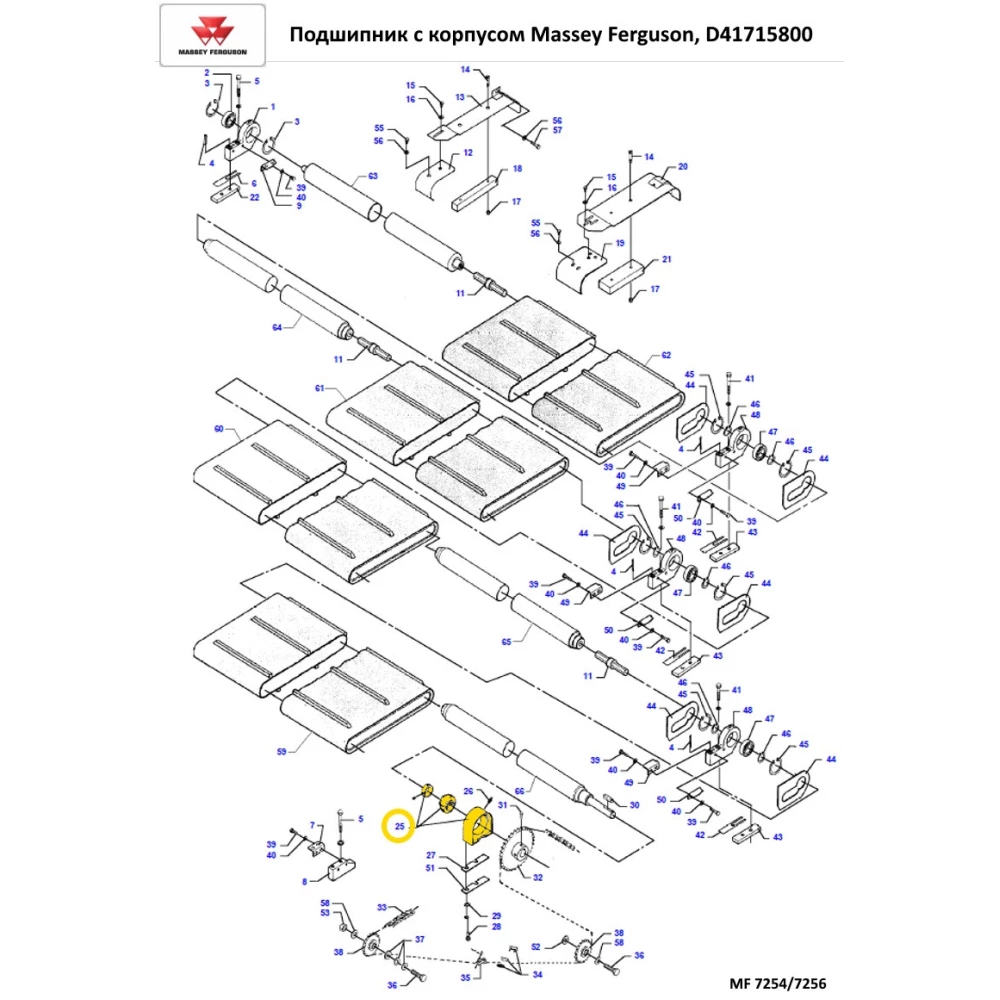

1 - D28251562 - 1 - Bearing Carrier
     D28251581 - 1 - Bearing Carrier (1)
2 - D41715600 - 1 - Bearing Ball (1)
3 - D42514500 - 2 - Circlip (1)
4 - D42616100 - 6 - Pin
5 - D40426600 X Hex. Sock. Screw
6 - D28251519 X Shim OPTIONAL
7 - D28251380 - 4 - Bracket Right Hand 14“ - 4,34M
     D28251380 - 5 - Bracket Right Hand 16“-18“-20“ 4,95M-5,56M -6,16M
8 - D28251419 - 1 - Bracket Replace and repair. Old interchangeable with new D18251419
9 - D28251379 - 4 - Bracket Left Hand 14“ - 4,34M
     D28251379 — 5 — Bracket Left Hand 16“-18“-20“ 4,95M-5,56M -6,16M
11 — D28251565 — 2 — Shaft 14“ — 4,95M
       D28251565 - 3 - Shaft 16“-18“-20“ 4,95M-5,56M -6,16M
12 - D18281700 - 1 - Plate Right Hand 20“-6,16M
       D18284385 — 1 - Shield Right Hand 14“ - 4,34M
       D18284386 - 1 - Shield Right Hand 16“ - 4,95M
       D18284387 - 1 - Shield Right Hand 18“-5,56M
13 - D18281703 - 1 - Plate Right Hand 20“ - 6,16M
       D18284374 - 1 - Shield Left Hand 14“ - 4,34M
       D18284377 - 1 - Shield Right Hand 18“ - 5,56M
      D18284379 - 1 - Shield Right Hand 16“ - 4,95M
14 - D40064000 X Screw
15 - D40404900 X Hex. Sock. Screw
16 - D20400506 X Washer
17 - D41087500 X Locknut
18 - D28281310 - 2 - Guide From Serial or Engine Number 937533
19 - D18281698 - 2 - Shield 14“ - 4,34M
       D18281698 - 3 - Shield 16“-18“-20“4,95M-5,56M 6,16M
20 - D18281699 - 2 - Shield 14“ - 4,34M
       D18281699 - 3 - Shield 16“-18“-20“ 4,95M-5,56M -6,16M
21 - D28281311 - 4 - Guide From Serial or Engine Number 937533
22 - D28251146 - 1 - Strap 14“-18“-20“ 4,34M-5,56M-6,16 Up to Serial or Engine Number 939559
       D28285303 - 1 - Strap 14“-18“-20“ 4,34M-5,56M-6,16 From Serial or Engine Number 939560
       D28280923 - 1 - Dog 16“-4,95M
25 - D41715800 - 1 - Bearing Carrier
26 - D43004900 - 1 - Grease Nipple
27 - D28251448 X Shim OPTIONAL
28 - D40408000 X Hex. Sock. Screw
29 - D20400419 X Washer
30 - D43104900 - 1 - Key
31 - D40466200 - 2 - Setscrew
32 - D28251161 - 1 - Sprocket Number of teeth/spines 32
       D28251163 - 2 - Sprocket [A]
33 - D42332800 - 1 - Chain
34 - D42363100 - 1 - Link

35 - D42363500 - 1 - Link
36 - D40433600 - 2 - Screw Metric
37 - D20400460 - 4 - Washer
38 - D41712300 - 2 - Tensioner
39 - D40404900 X Hex. Sock. Screw
40 - D20400506 X Washer
41 - D40693100 X Screw
42 - D28251445 X Shim OPTIONAL
43 - D28251146 X Strap 14“-16“-18“-20“ 4,34M - 4,95M 5,56M-6,16M Up to Serial or Engine Number 939559
43 - D28285303 X Strap From Serial or Engine Number 939560
44 - D28251420 - 4 - Control 14“ - 4,34M
44 - D28251420 - 6 - Control 16“-18“-20“ 4,34M-5,56M-6,16M
45 - D42515400 - 8 - Circlip
46 - D42503300 - 8 - Circlip
47 - D41716300 - 4 - Bearing Ball
48 - D28251583 - 2 - Bearing Carrier 14“ - 4,34M
48 - D28251583 - 3 - Bearing Carrier 16“-18“-20“ 4,95M-5,56M -6,16M
49 - D28251417 - 2 - Scraper Left Hand 14“ - 4,34M
49 — D28251417 — 3 — Scraper Left Hand 16“-18“-20“ 4,95M-5,56M -6,16M
50 - D28251418 - 2 - Scraper Right Hand 14“ - 4,34M
50 - D28251418 - 3 - Scraper Right Hand 16“-18“-20“ 4,95M-5,56M-6,16M
51 - D28281522 X Shim OPTIONAL
52 - D20400516 X Spacer OPTIONAL
53 - D41087900 - 1 - Locknut
55 - D40402200 X Hex. Sock. Screw
56 - D20400470 X Washer
57 - D40402400 - 1 - Hex. Sock. Screw
58 - D28181284 - 2 - Washer
59 - D28250932 - 1 - Band 18“ - 20“5,56M - 6,16M
59 - D28250931 - 1 - Band 16“ - 4,95M
59 - D44742000 - 1 - Kit, Repair [B]
60 - D28250931 - 1 - Band 14“ - 16“4,34M - 4,95M18“ - 5,56M
60 - D28250932 - 1 - Band 20“ - 6,16M
61 - D28250931 - 1 - Band 16“ - 18“ 4,95M - 5,56M
61 - D28250932 - 1 - Band 20“ - 6,16M
62 - D28250931 - 1 - Band 16“ - 4,95M
62 - D28250932 - 1 - Band 18“ - 20“5,56M - 6,16M
63 - D28284144 - 1 - Roller Right Hand 16“ - 4,95M Up to Serial or Engine Number 939559
63 - D28285817 - 1 - Roller Right Hand 16“ - 4,95M From Serial or Engine Number 939560
63 - D28284108 - 1 - Roller Right Hand 18“ - 20“5,56M - 6,16M Up to Serial or Engine Number 939559
63 - D28285142 - 1 - Roller Right Hand 18“ - 20“ 5,56M - 6,16M From Serial or Engine Number 939560
64 - D28284145 - 1 - Roller 16“ - 18“ 4,95M - 5,56M
64 - D28284109 - 1 - Roller 20“ - 6,16M Up to Serial or Engine Number 939559

64 - D28285142 - 1 - Roller 20“ - 6,16M From Serial or Engine Number 939560
64 - D28285817 - 1 - Roller 16“ - 18“ 4,95M - 5,56M 20“ - 6,16M
65 - D28284145 - 1 - Roller 16“ - 18“ 4,95M - 5,56M 14“ - 4,34M Up to Serial or Engine Number 939559
65 - D28285817 - 1 - Roller 16“ - 18“ 4,95M - 5,56M 14“ - 4,34M From Serial or Engine Number 939560
65 - D28284109 - 1 - Roller 20“ - 6,16M Up to Serial or Engine Number 939559
65 - D28285142 - 1 - Roller 20“ - 6,16M From Serial or Engine Number 939560
66 - D28284146 - 1 - Roller 16“ - 4,95M Up to Serial or Engine Number 939559
66 D28284110 1 Roller 18“ - 20“
5,56M - 6,16M
Up to Serial or Engine Number 939559
66 D28285817 1 Roller 16“ - 4,95M
From Serial or Engine Number 939560
66 D28285142 1 Roller 14“ — 18“
4,34M - 5,56M
20“ - 6,16M
From Serial or Engine Number 939560
