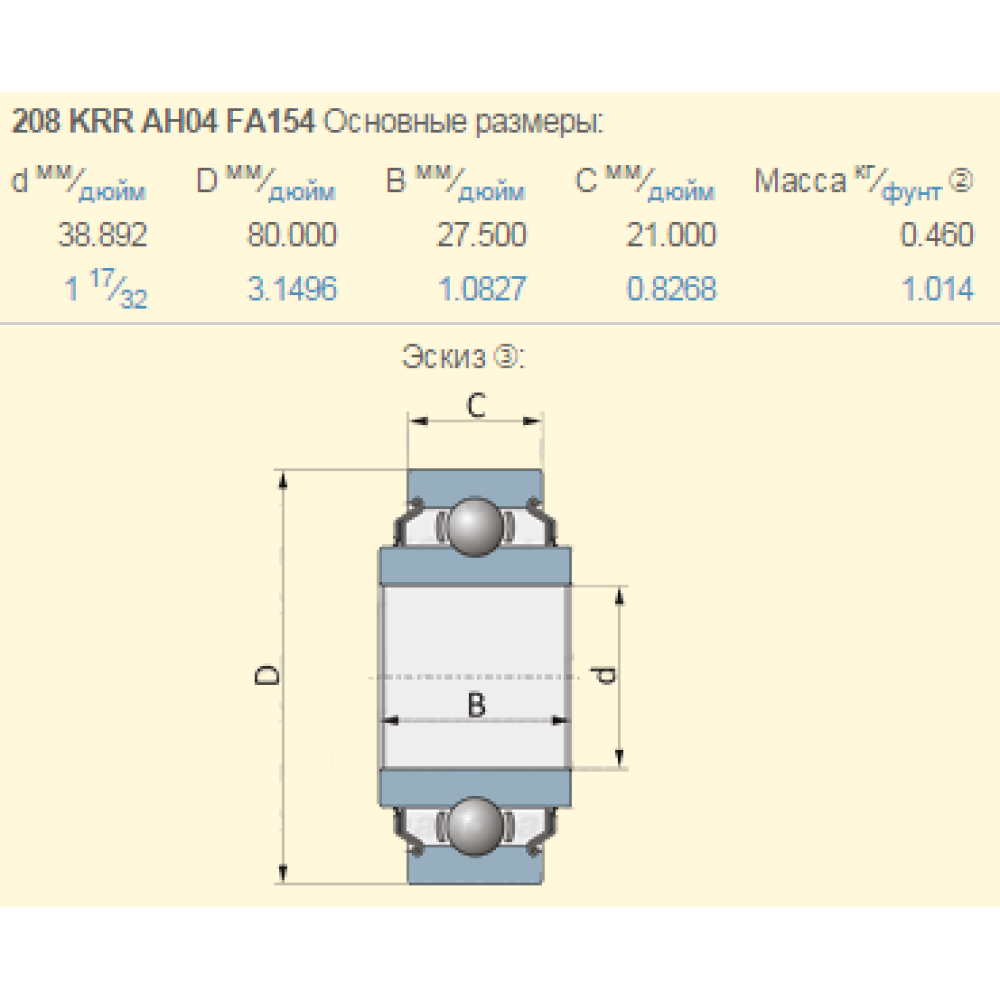

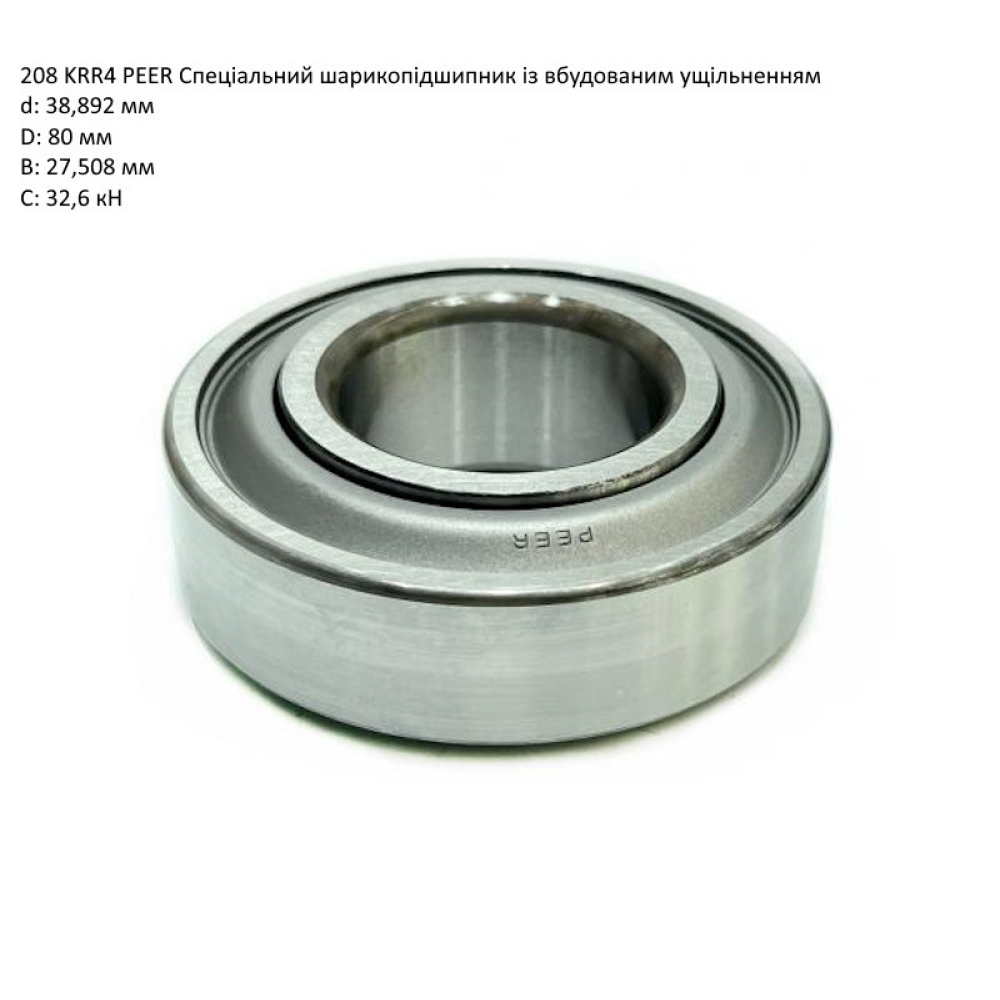

JD8524 підшипник John Deere 208KRRAH04 PEER

1 - Gear Case 1 : DE30569 Remarks : SUB FOR AXE13674
2 - Seal 1 : AH90963
3 - Shield 1 : AZ103401
4 - Bearing Housing W/O Bearing 1 : H113053
5 - Housing 1 : H130137
6 - Lock Nut 1 : H149361
7 - Ball Bearing 4 : JD8524
8 - Washer 1 : T146246
9 - Screw 12 : 19M7786 Remarks : M10 X 30
10 - Screw 1 : 19M7843 Remarks : M16 X 35
11 - Shim 1 : 24H1533 Remarks : TK = 0.4572 mm
12 - Washer 3 : 24M7239 Remarks : 10.700 X 21 X 2.500 mm
13 - Washer 1 : 24M7277 Remarks : 21 X 60 X 4 mm
14 - Snap Ring 2 : N71921
15 - Spacer 1 : HXE17134
16 - Shaft 1 : HXE16941
17 - Shaft 1 : CE31099 Remarks : SUB FOR HXE17135
18 - Snap Ring 1 : P46770
19 - Groove Pin 2 : 25M3827 Remarks : 3 X 8 mm
20 - Shim Kit 1 : AH138955 Remarks : Includes 2 Shims of Thickness 0.254 mm and 0.508 mm
21 - Bevel Gear Drive 1 : DE20711 Remarks : Z = 23 / 23
22 - Screw 1 : 19M7804 Remarks : M10 X 40
23 - Lock Nut 10 : 14M7400 Remarks : M10
24 - Screw 5 : 19M7783 Remarks : M10 X 16
25 - Seal 1 : H135192
26 - Cover 1 : H136572 Remarks : Front
27 - Cover 1 : H136573 Remarks : Rear
28 - Seal 1 : H135193 Remarks : Rear
29 - Washer 1 : 24M7178 Remarks : 10.500 X 30 X 2.500 mm
