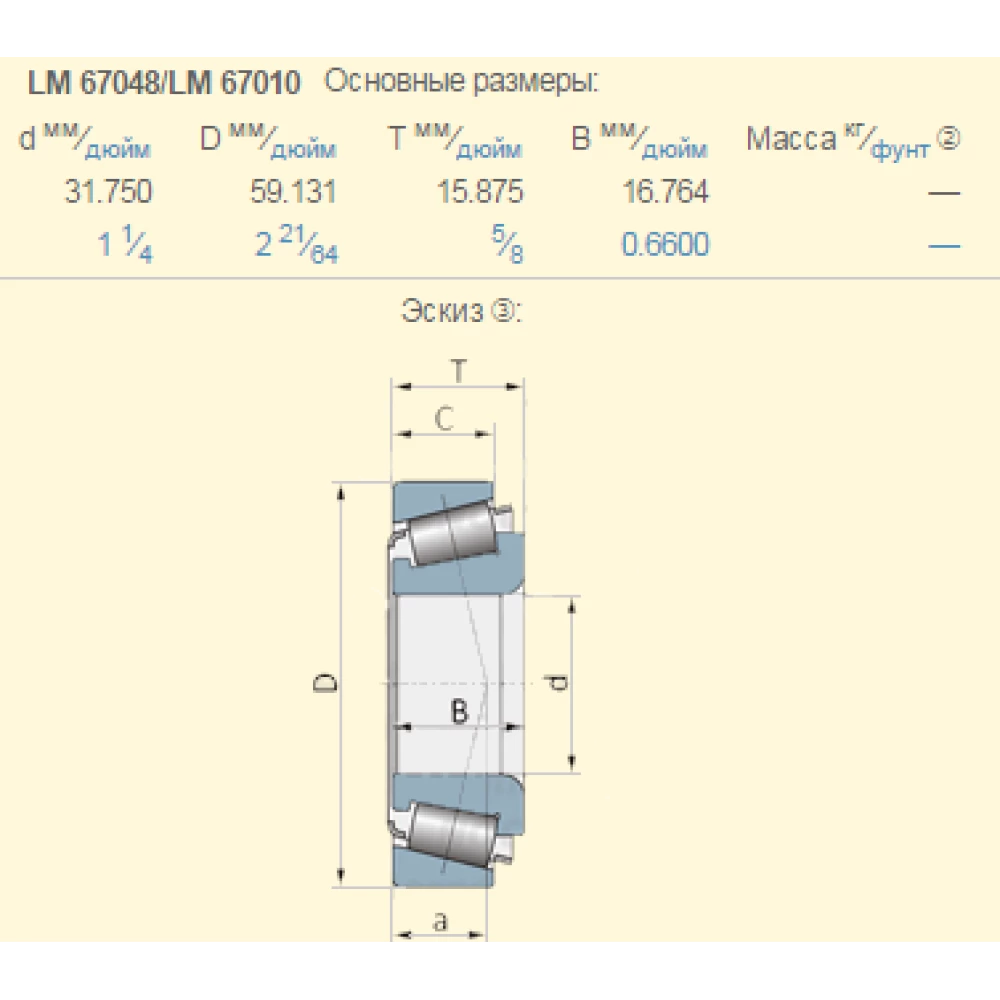

Підшипник John Deere AE42998 аналог LM67048/10 TIMKEN

Подшипник John Deere AE42998 аналог

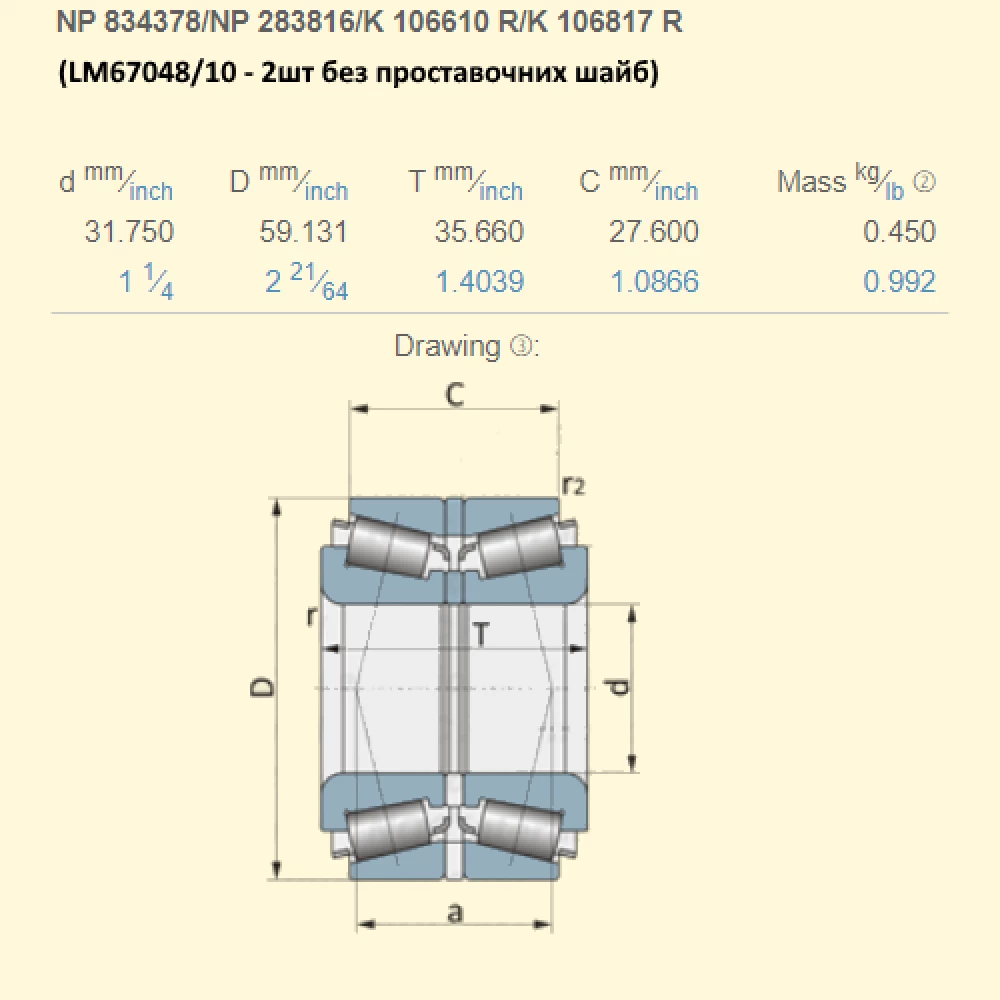

LM67048/10​ - потрібно 2шт (нема проставочних шайб)

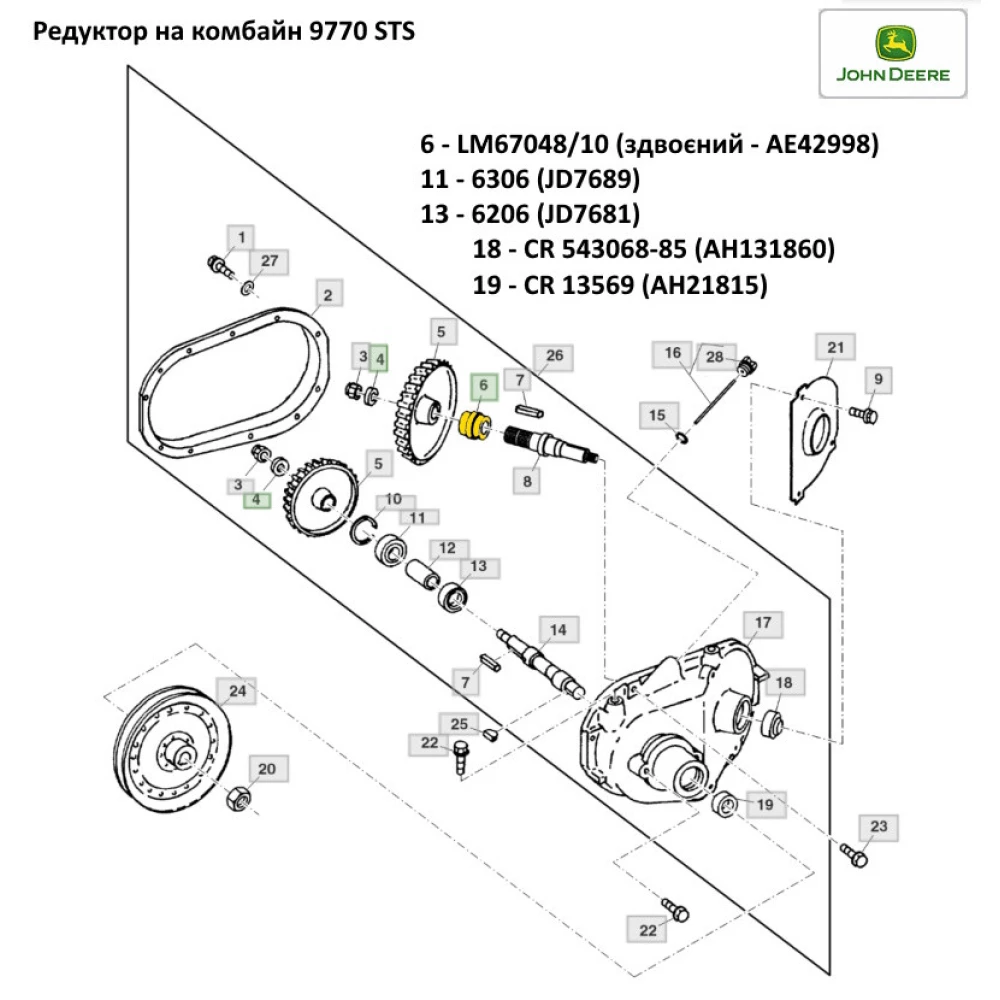

1 - Hexagonal Head Screw 11 : 19M7407 Remarks : M8 X 25
2 - Cover 1 : H135454
3 - Hexagonal Prevailing Torque Nut 2 : R69706
4 - Steel Round Hole Washer 2 : 24H1825 : 11/16" X 1-1/2" X 0.194"
5 - Bevel Gear 1 : AH162230 Remarks : (Matched Set Gears) Z 46/53
6 - Double Row Tapered Roller Bearing 1 : AE42998
7 - Clean Grain Elevator Shaft Key 2 : 49M4821 Remarks : 6 X 32 mm, 6 X 6 X 32 MM
8 - Shaft 1 : CE18445
9 - Hexagonal Head Flanged Screw 3 : 19M7866 Remarks : M8 X 20
10 - Square/Rectangular Section Internal Snap Ring 1 : P46874
11 - Single Row Cylindrical Outer Diameter Ball Bearing 1 : JD7689
12 - Plain Bushing 1 : 28H3054 Remarks : 1.278" X 1.660" X 2-15/32"
13 - Single Row Cylindrical Outer Diameter Ball Bearing 1 : JD7681
14 - Clean Grain Elevator Drive Shaft 1 : H170967
15 - RH Round Cross Section O-Ring 1 : R26375
16 - Clean Grain Elevator Gear Case Dipstick 1 : AH166047
17 - Clean Grain Elevator Gear Case Housing 1 : CE18015
18 - Internal Oil Seal 1 : AH131860
19 - Internal Oil Seal 1 : AH21815
20 - Hexagonal Prevailing Torque Nut 1 : 14M7589 Remarks : M16
21 - Wear Plate 1 : H137606
22 - Hexagonal Head Flanged Screw 4 : 19M7789 Remarks : M12 X 30
23 - Hexagonal Head Flanged Screw 2 : 19M7791 Remarks : M12 X 40
24 - Elevator Drive Pulley 1 : AH221847
25 - Clean Grain Elevator Driveshaft Key 1 : 26M7008 Remarks : 8 X 28 mm
26 - Gear Case 1 : DE20100
27 - Steel Round Hole Washer 22 : 24H1685 Remarks : 11/32" X 47/64" X 0.083"
28 - Knob 1 : H139966
