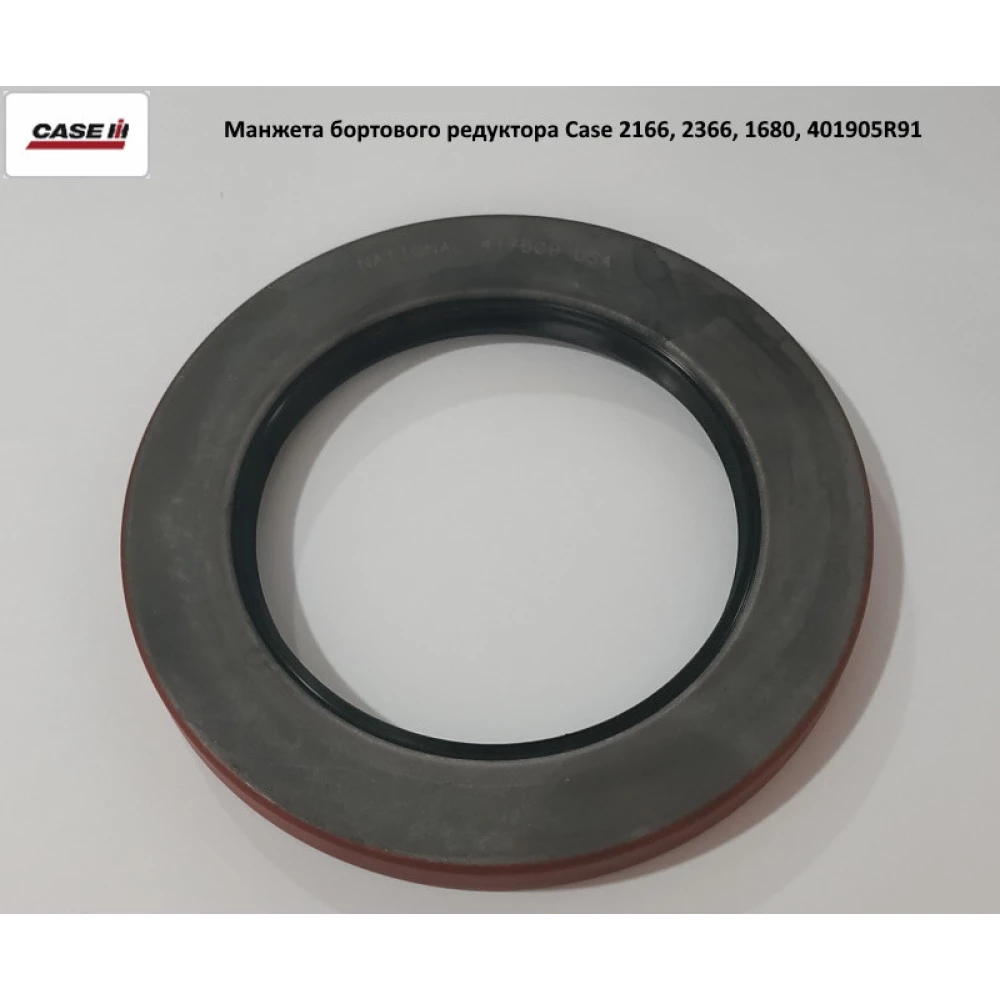

Манжета бортового редуктора Case 2166, 2366, 1680, 401905R91

Манжета бортового редуктора Case 2166, 2366, 1680, 401905R91

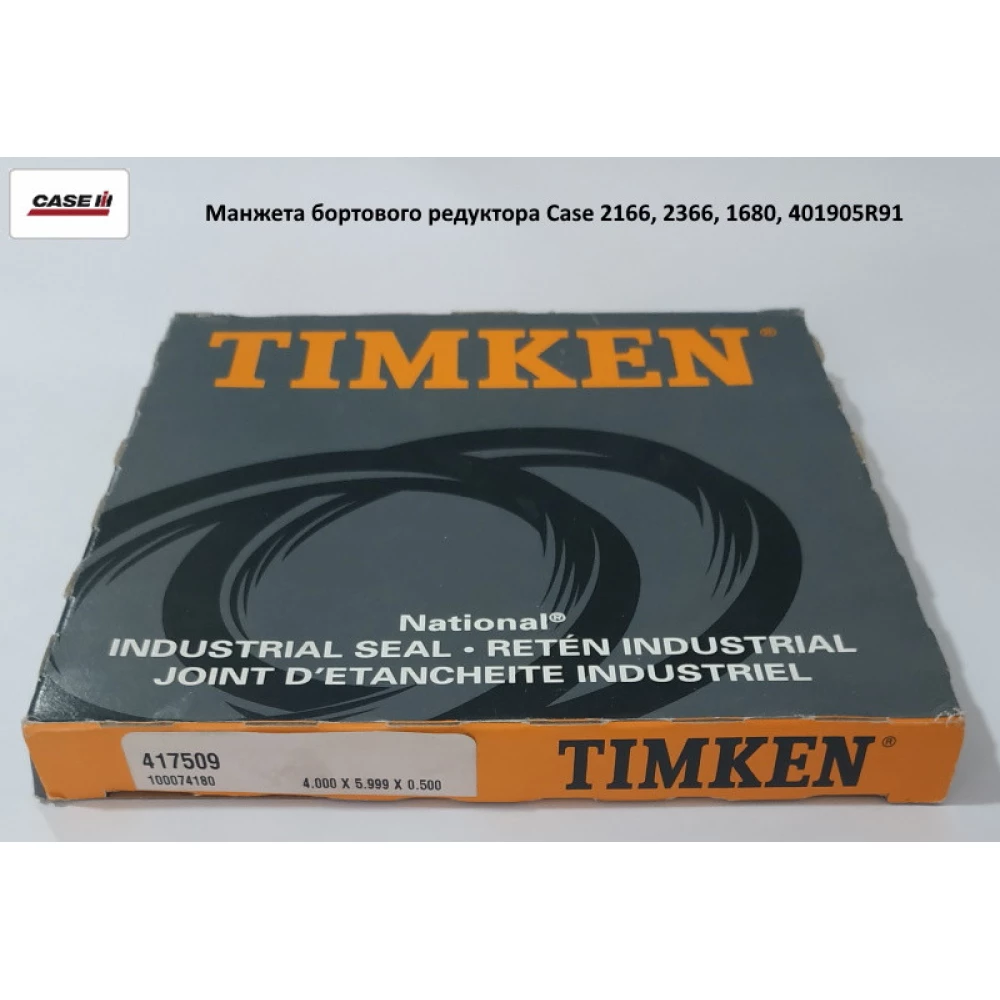

417509 Timken

    141577A1 - 2 - REDUCER, DRIVE ASSY., consists of: 1 - 32
1 - 140780A1 - 1 - HOUSING,
2 - 218-5158 - 2 - PLUG, Hex Hd, 1 1/16“-12 ORB, 1-1/16 in, Includes: 3
3 - 237-6012 - 1 - O-RING, 12-1, 90 Duro, .924 ID x .118“ Thk,
4 - 141578A1 - 1 - COVER,
5 - 628-12035 - 12 - BOLT, Hex, M12 x 35, 10.9, Full Thd,
6 - 896-12012 - 12 - WASHER, M12 x 24.5 x 3, HT,
7 - 628-10035 - 6 - BOLT, Hex, M10 x 35, 10.9, Full Thd,
8 - 896-12010 - 6 - WASHER, M10 x 21.5 x 2.5, HT,
9 - 138279A1 - 1 - HALF SHAFT,
10 - 401905R91 - 1 - SEAL,
11 - 283444C91 - 1 - BEARING, CONE,
12 - 18241H - 1 - BEARING SET, cup
13 - 130809C1 - 1 - SPACER,
14 - 138280A1 -1 - SLEWING RING, GEAR 73T
15 - 130808C1 - 1 - SPACER,
16 - 66117R91 - 1 - BEARING,
17 - 54404R1 - 1 - BEARING, CUP,
18 - 135289A1 - 1 - RETAINER,
19 - 135299A1 - AR SHIM, 0.05 mm
19 - 135300A1 - AR SHIM, 0.457 mm
19 - 135301A1 - AR SHIM, 0.635 mm
20 - 37-1512 - 1 - DOWEL, 5/16“ x 3/4“, PIN 5/16 x 3/4
21 - 828-24090 - 1 - BOLT, Hex, M24 x 90 10.9, BOLT 24 x 90 mm
22 - 403895R1 - 1 - COVER,
23 - 401911R91 - 1 - BEARING, CONE,
24 - 61012R1 - 1 - BEARING SET, cup
25 - 135290A1 - 1 - SHAFT, 12 T
26 - K4729 - 1 - BEARING, CONE,
27 - 135651A1 - 1 - BEARING, CUP, cup
28 - 135302A1 - AR SHIM, 0.05 mm
28 - 135303A1 - AR SHIM, 0.46 mm
28 - 135305A1 - AR SHIM, 0.63 mm
29 - 193652A1 - 1 - WASHER, RING
30 - 101-21412 - 1 - RING, SNAP, #412, 4.430“, Int,
31 - 135292A1 - 1 - SEAL,
32 - 135291A1 - 1 - GUARD,
33 - 627-20060 - 14 - BOLT, Hex, M20 x 60, 10.9, BOLT 20 x 60 mm
34 - 137339A2 - 14 - WASHER,
35 - 135314A1 - 4 - BUSHING, BUSHING
36 - 135950A1 - 2 - ADAPTER, Includes: 36A
36A - 237-6012 - 1 - O-RING, 12-1, 90 Duro, .924 ID x .118“ Thk, , BSN JJC0187449
37 - 219-434 - 2 - BREATHER, 1/8“-27 NPT, Short, w/washer, LUBRICATOR
38 - 184341C2 - 4 - RING, COUPLING, ASSY., Includes: 39, BSN JJC0187449
39 - 219-45 - 1 - NIPPLE, LUBE, 65є, 1/4“ NPT x .77“ lg, Drive, LUBRICATOR

40 - 123763A1 - 8 - RING, SNAP,
41 - 125637A1 - 1 - SHAFT, right, 661 mm, BSN JJC0187449
41 - 135974A1 - 1 - SHAFT, left, 586 mm, BSN JJC0187449
42 - 113-2293 - 4 - BOLT, Hex, 3/8“-16 x 3 1/2“, G8, , BSN JJC0187449
43 - 654049R1 - 4 - NUT, lock 3/8 in, BSN JJC0187449
44 - 21864R1 - 4 - PIN, , BSN JJC0187449
45 - 248600A1 - 4 - COUPLING, ASSY., Australia only, Includes: 39, ASN JJC0187450
46 - 242851A1 - 1 - SHAFT, right, 661 mm, ASN JJC0187450
46 - 242856A1 - 1 - SHAFT, left, 586 mm, ASN JJC0187450
47 - 244549A1 - 4 - COLLAR, , ASN JJC0187450
48 - 245105A1 - 4 - CLIP, ELECTRICAL, RETAINER, ASN JJC0187450
