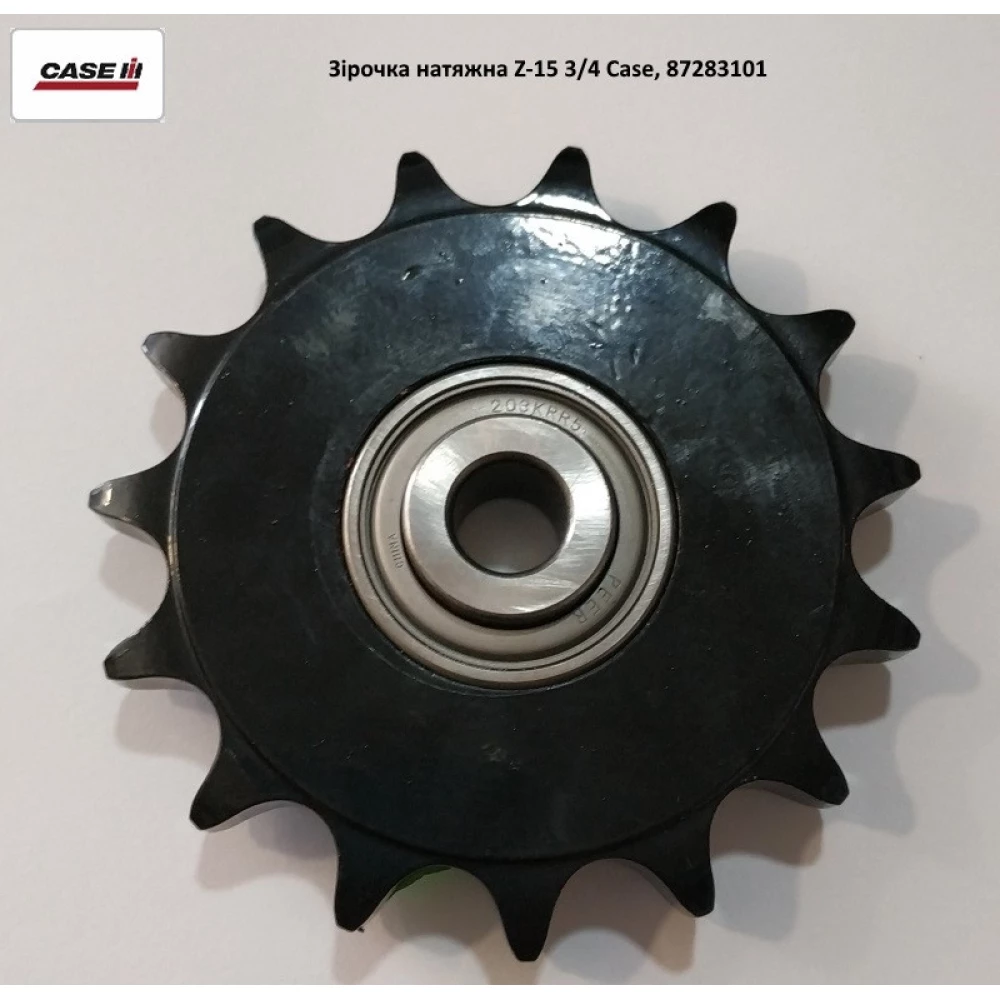

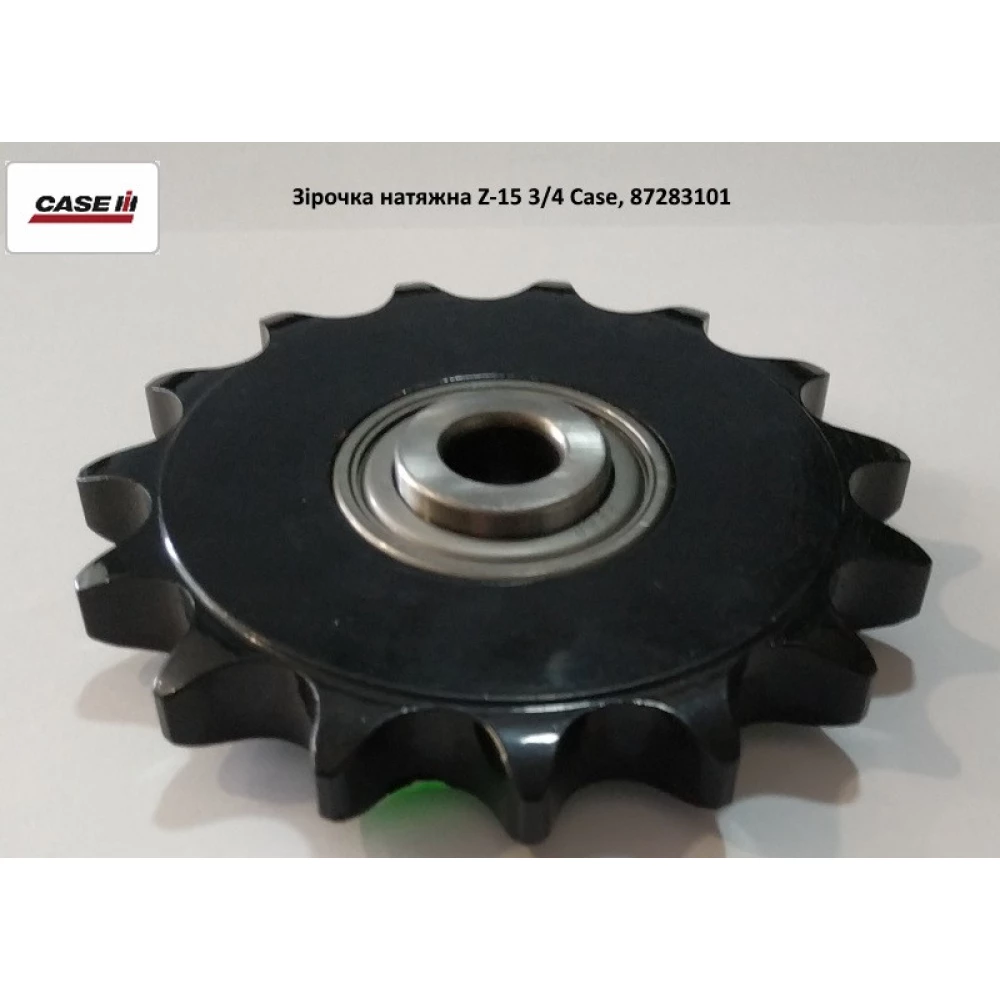

Зірочка натяжна Z-15 3/4 Case, 87283101 Ri.Ma.

Зірочка натяжна Z-15 3/4 Case, 87283101 аналоги 9831670, 84980926

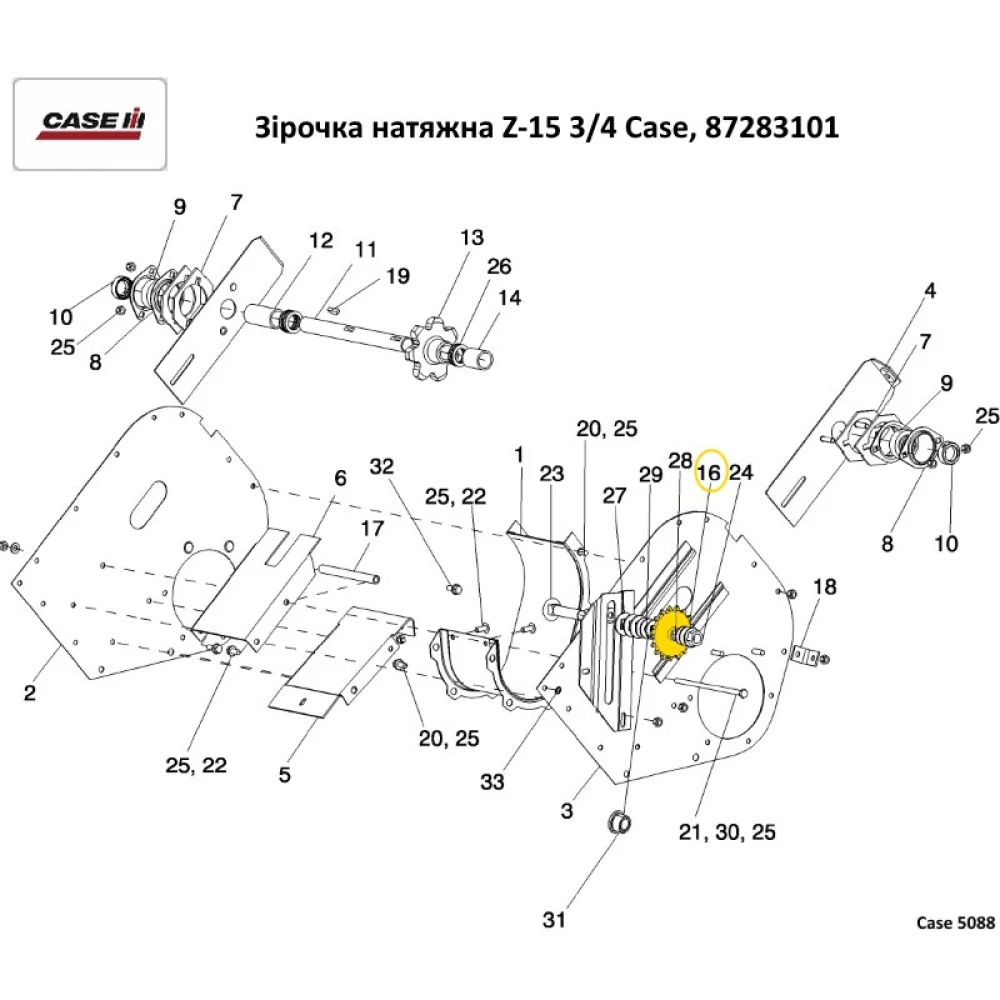

1 – 87622913 – 1 – TROUGH, Elevator Head

2 – 87620241 – 1 – PLATE ASSY., Head, Tailings, Left Hand

3 – 87620236 – 1 – PLATE ASSY., Head, Tailings, Right Hand

4 – 87622915 – 2 – SUPPORT ASSY., Head Shaft

5 – 87736713 – 1 – COVER, TOP, Tailings Elevator Head

6 – 87622916 – 1 – BOTTOM, Tailings Elevator Head

7 – 87624305 – 4 – PLATE, LARGE, Spacer

8 – 50591 – 4 – FLANGE, Bearing

9 – 214366C91 – 2 – BEARING, BALL, Clean Grain Delivery Auger

10 – 87431217 – 2 – COLLAR, Bearing Lock

11 – 87515814 – 1 – SHAFT, Tailings Elevator

12 – 516327R1 – 1 – SPACER, 1" Pipe x 2 3/4", Tailings Elevator Shaft

13 – 87691619 – 1 – SPROCKET, 7T, Headshaft, Tailings

14 – 87036418 – 1 – SPACER, 1" Pipe x 1 9/16", Tailings Elevator Shaft

15 – 87622836 1 – BRACKET, Elevator Chain Tightener

16 – 87283101 – 1 – SPROCKET, Main

17 – 87302565 – 1 – SPACER, Tailings Elevator Head

18 – 142478A2 – 1 – BRACKET, Chain Shield Tailings Elevator

19 – 126-124 – 1 – KEY, WOODRUFF, #15, 1/4" x 1", HT, Tailings Elevator Shaft

20 – 87681207 – 6 – BOLT,

21 – 87690472 – 2 – BOLT,

22 – 847-3820 – 4 – SCREW, Sltd Tr Hd, M8 x 20, 10.9, Serr,

23 – 711-16080 – 1 – BOLT, CARRIAGE, M16 x 80, 8.8,

24 – 86512498 – 1 – NUT, M16 x 2, Flg, Cl 10,

25 – 86629542 – 16 – NUT, LOCK, M8 x 1.25, Cl 8,

26 – 495-81069 – 7 – WASHER, 1 1/32" x 1 1/2" x .060",

27 – 498-81010 – 3 – WASHER, 41/64" x 1 1/2" x .105", Sq Hole,

28 – 140048 – 1 – WASHER, SPRING, Belleville, M16,

29 – 495-11066 – 3 – WASHER, 5/8", SAE,

30 – 495-11034 – 2 – WASHER, 5/16", SAE,

31 – 84334697 – 1 – BUSHING,

32 – 87656137 – 3 – BOLT, Hex Flg, M8 x 20, 10.9, Full Thd,

33 – 495-81135 – 3 – WASHER, 13/32" x 1" x .120"
